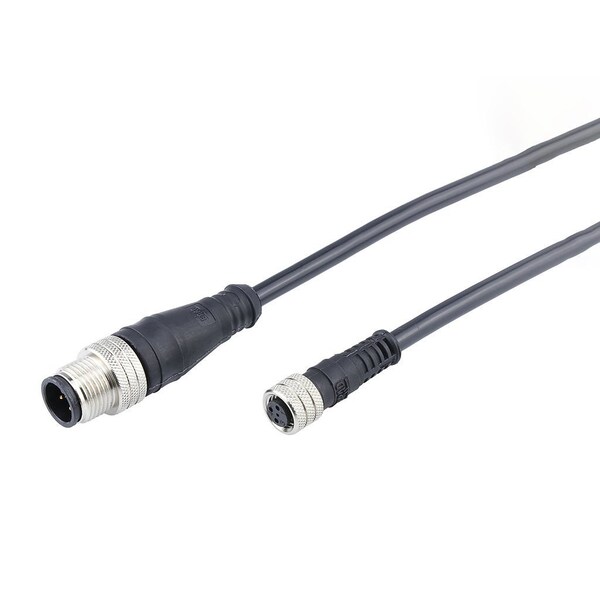

NC/MMC-3P-F/MM-S/S-0.6M-PVC-HF
No se puede traducir esta descripción, ya que parece ser un código o número de serie de un producto específico y no tiene un significado en español.
| Cable Length | 0.6 m |
|---|---|
| Type | Double Ended |
| IP Rating | IP68 |
| Keyway | None |
| Material - Plating Mating | Gold |
| Material - Coupling Nut | Nickel-plated Brass |
| Color - Cable Jacket | Black |
| Material - O-Ring | Fluoro-elastomer |
| Material - Connector Body | TPU |
| Gender | Female-Male |
| Orientation | Straight to Straight |
| Temperature Range - Operating | -30°C TO +80°C |
| Material - Cable Jacket | PVC |
| UL | E152210 |
| Poles | 3 |
| Voltage - Maximum | 60V AC / 75V DC |
| Current - Maximum per Contact | 4 A |
| LED Indicator | No |
| Wire/Cable Type | UL 2464 |
| Coupling Style | Threaded |
| Product Name | Micro-Change |
| Series | 120087 |
| Material - Contact | Copper Alloy |
| Connector End A | Nano-Change |
| Connector End B | Micro-Change |
| Package Quantity | 1 |
