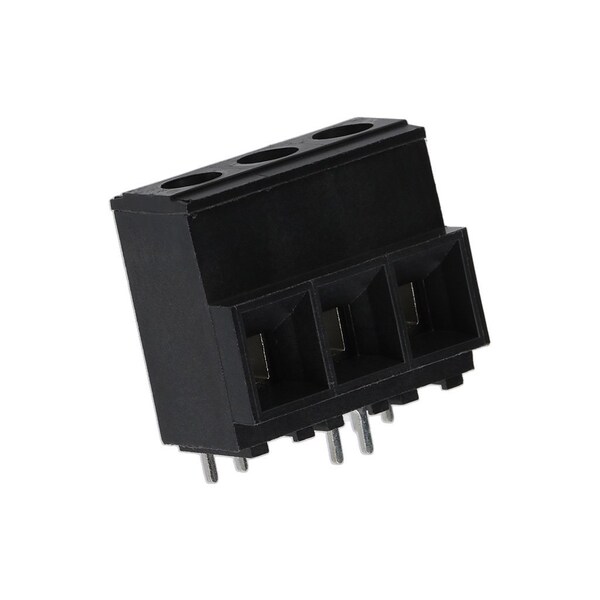

Neo 10.16Mm Hi-Pwr 60A S91 Sty05 Ckt03
| Type | Euro Block |
|---|---|
| Number of Rows | 1 |
| Series | 39910 |
| Plating min - Termination | 3.81 um |
| Pitch - Mating Interface | 10.16 mm |
| Voltage - Maximum | 600 V |
| Orientation | Vertical |
| Pitch - Termination Interface | 10.16 mm |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | 130°C |
| Material - Metal | Brass, Copper |
| Current - Maximum per Contact | 60 A |
| Material - Resin | Polyester |
| Material - Plating Mating | Tin |
| Entry Angle | Horizontal |
| Wire Size AWG | 10, 12, 14, 16, 18, 6, 8 |
| Termination Interface: Style | Through Hole |
| Shrouded | Fully |
| PC Tail Length | 4.1 mm |
| Stackable | No |
| UL | E48521 |
| Flammability | 94V-0 |
| Panel Mount | No |
| Lock to Mating Part | None |
| Circuits (Loaded) | 3 |
| Material - Plating Termination | Tin |
| Color - Resin | Black |
| Plating min - Mating | 3.81 um |
| Surface Mount Compatible (SMC) | No |
| PCB Retention | None |
| Wire Size mm² | 0.75-10.00 |
| Product Name | Eurostyle Fixed Mount |
| Component Type | One Piece |
| Package Quantity | 1 |
