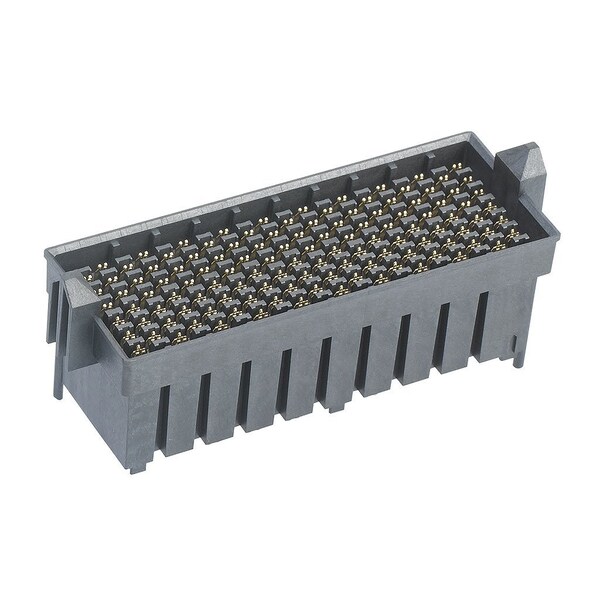

Neoscale Recpt Assy 8Mm 4X18 85 Ohms
| Series | 170814 |
|---|---|
| Application | Board-to-Board, Signal |
| Orientation | Vertical |
| Lock to Mating Part | No |
| Material - Plating Termination | Tin |
| Polarized to PCB | Yes |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 216 |
| Max-Temp | 260 |
| Material - Resin | Liquid Crystal Polymer |
| Grounding to PCB | No |
| Component Type | PCB Receptacle |
| Temperature Range - Operating | -55 to 85 deg C |
| Product Name | NeoScale |
| Plating min - Mating | 0.762µm |
| Number of Rows | 4 |
| Guide to Mating Part | Yes |
| Glow-Wire Capable | No |
| Max-Duration | 20 |
| Material - Metal | High Performance Alloy |
| Keying to Mating Part | None |
| Pitch - Mating Interface | 2.80mm |
| Termination Interface Style | Solder, Weld |
| Max-Cycle | 1 |
| PCB Retention | Yes |
| Current - Maximum per Contact | 1 A |
| Material - Plating Mating | Gold |
| PCB Locator | Yes |
| Durability (mating cycles max) | 100 |
| Color - Resin | Black |
| Voltage - Maximum | 30V AC |
| Package Quantity | 1 |
