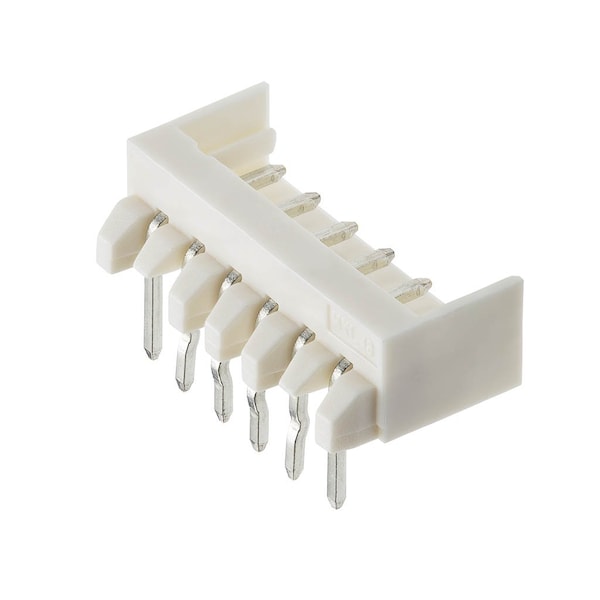

New 2.0 WtB Wafer Assy RA 11Ckt
| Circuits (maximum) | 11 |
|---|---|
| Material - Resin | Nylon |
| Material - Metal | Brass |
| Termination Interface: Style | Through Hole |
| Material - Plating Termination | Tin |
| Shrouded | Partial |
| Circuits (Loaded) | 11 |
| Temperature Range - Operating | -40° to +105°C |
| PCB Retention | Yes |
| PC Tail Length | 3.5 mm |
| Durability (mating cycles max) | 30 |
| Orientation | Right Angle |
| Voltage - Maximum | 125 V |
| Plating min - Termination | 1.016µm |
| Plating min - Mating | 1.016µm |
| Pitch - Mating Interface | 2 mm |
| Current - Maximum per Contact | 2 A |
| Number of Rows | 1 |
| Material - Plating Mating | Tin |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| Lock to Mating Part | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| Package Quantity | 1 |
