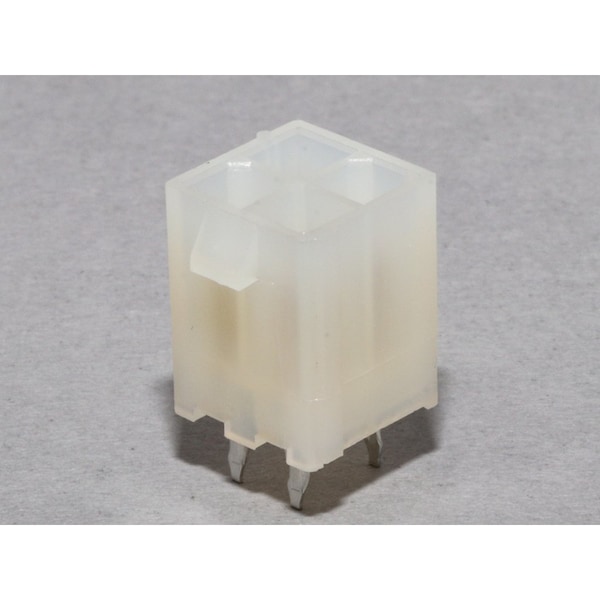

New Mini Fit Header Assy 4Ckt
| Orientation | Vertical |
|---|---|
| Material - Resin | Nylon |
| Circuits (Loaded) | 4 |
| Plating min - Termination | 2.540µm |
| PCB Thickness - Recommended | 1.6 mm |
| PC Tail Length | 3.5 mm |
| Termination Interface: Style | Through Hole |
| Voltage - Maximum | 600 V |
| Process Temperature max. C | 260 |
| Shrouded | Fully |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (maximum) | 4 |
| Duration at Max. Process Temperature (seconds) | 5 |
| Color - Resin | Natural |
| Material - Plating Termination | Matte Tin |
| Current - Maximum per Contact | 9 A |
| Material - Metal | Brass |
| Pitch - Termination Interface | 4.2 mm |
| Plating min - Mating | 0.762µm |
| Flammability | 94V-2 |
| Durability (mating cycles max) | 30 |
| UL | E29179 |
| Pitch - Mating Interface | 4.2 mm |
| Material - Plating Mating | Gold |
| Max. Cycles at Max. Process Temperature | 1 |
| Polarized to Mating Part | Yes |
| Lock to Mating Part | Yes |
| PCB Locator | Yes |
| CSA | LR19980 |
| Polarized to PCB | Yes |
| Number of Rows | 2 |
| Package Quantity | 1 |
