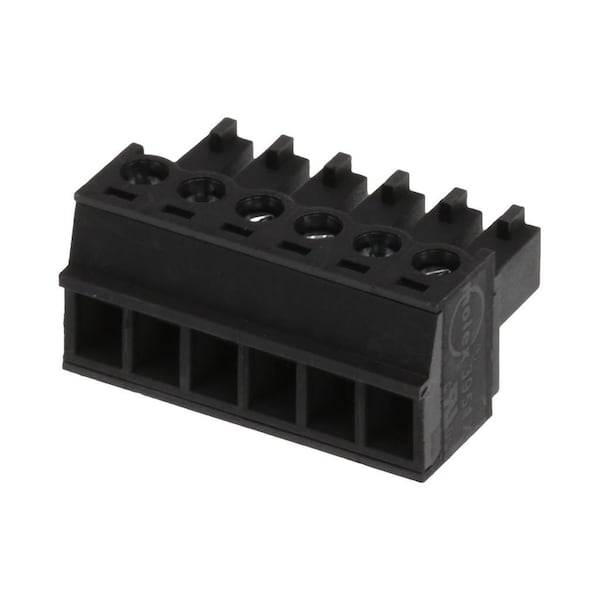

Pluggable Terminal Blocks 3.81Mm Euro Plug Ra Uro Plug Ra Blk 6Ckt
| Type | Euro Block |
|---|---|
| Lock to Mating Part | None |
| Number of Rows | 1 |
| Entry Angle | Vertical |
| UL | E48521 |
| Pitch - Mating Interface | 3.81 mm |
| Panel Mount | No |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Voltage - Maximum | 300 V |
| Stackable | No |
| Current - Maximum per Contact | 8 A |
| Orientation | Horizontal |
| Pitch - Termination Interface | 3.81 mm |
| Wire Size mm² | 0.20-1.31 |
| Circuits (Loaded) | 6 |
| Wire Size AWG | 16, 18, 20, 22, 24 |
| Series | 39510 |
| Component Type | Plug |
| Product Name | ESE,Eurostyle Pluggable |
| Package Quantity | 1 |
