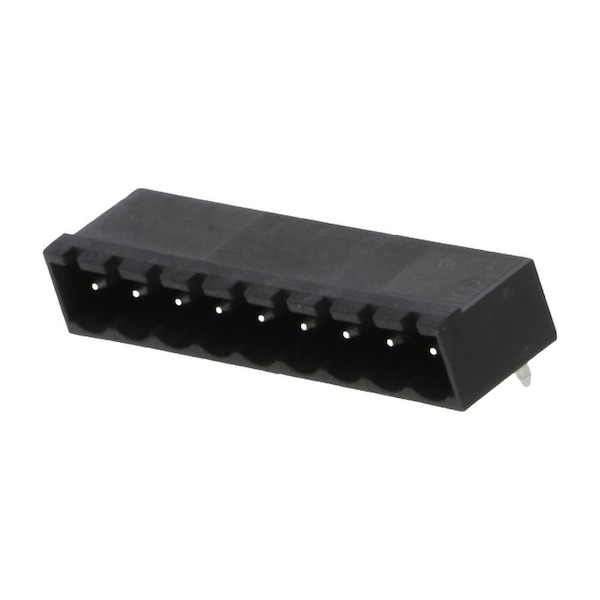

Pluggable Terminal Blocks 5.08Mm Euro Header R O Header Ra Blk 9Ckt
| Type | Euro Block |
|---|---|
| UL | E48521 |
| Number of Rows | 1 |
| Orientation | Horizontal |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| PCB Thickness - Recommended | 3.18 mm |
| Voltage - Maximum | 300 V |
| Stackable | No |
| Polarized to Mating Part | Yes |
| Shrouded | Ends |
| Current - Maximum per Contact | 15 A |
| PC Tail Length | 5.08 mm |
| Pitch - Mating Interface | 5.08 mm |
| Pitch - Termination Interface | 5.08 mm |
| Circuits (Loaded) | 9 |
| Panel Mount | No |
| Series | 39532 |
| Product Name | ESE,Eurostyle Pluggable |
| Component Type | PCB Header |
| Package Quantity | 1 |
