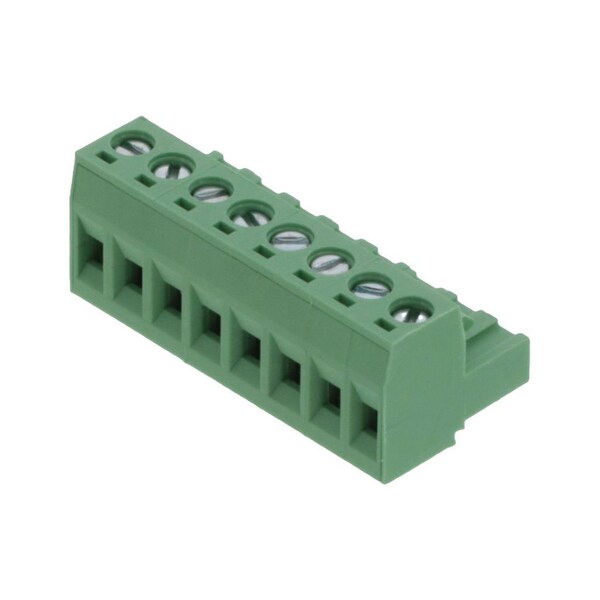

Pluggable Terminal Blocks 5.0Mm Euro Plug Ra G Uro Plug Ra Grn 8Ckt
| Type | Euro Block |
|---|---|
| Wire Size (AWG) | 12, 14, 16, 18, 20, 22, 24, 26 |
| Orientation | Horizontal |
| Circuits (Loaded) | 8 |
| UL | E48521 |
| Product Name | ESE,Eurostyle Pluggable |
| Current - Maximum per Contact | 18 A |
| Series | 39520 |
| Component Type | Plug |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 5 mm |
| Voltage - Maximum | 300 V |
| Number of Rows | 1 |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | No |
| Entry Angle | Vertical |
| Package Quantity | 1 |
