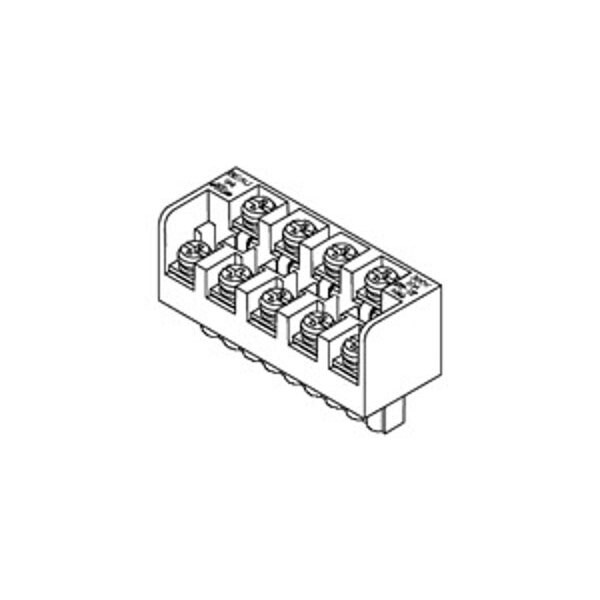

Pluggable Terminal Blocks Plug Rwe 5.08Mm Emat Rwe 5.08Mm Emate 4 A
| Type | Euro Block |
|---|---|
| Temperature Range - Operating | 130°C |
| Voltage - Maximum | 300 V |
| Orientation | Vertical |
| Wire Size mm² | 0.50-2.50 |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 4 |
| UL | E48521 |
| Stackable | No |
| Pitch - Termination Interface | 5.08 mm |
| Pitch - Mating Interface | 5.08 mm |
| Color - Resin | Black |
| Entry Angle | Horizontal |
| Wire Size AWG | 12, 14, 16, 18, 20, 22 |
| Panel Mount | No |
| Current - Maximum per Contact | 15 A |
| Lock to Mating Part | None |
| Flammability | 94V-0 |
| Termination Interface: Style | Screw, Lug |
| Number of Rows | 2 |
| Material - Resin | Nylon |
| Component Type | Plug |
| Product Name | EuroMate Pluggable |
| Series | 39940 |
| Package Quantity | 1 |
