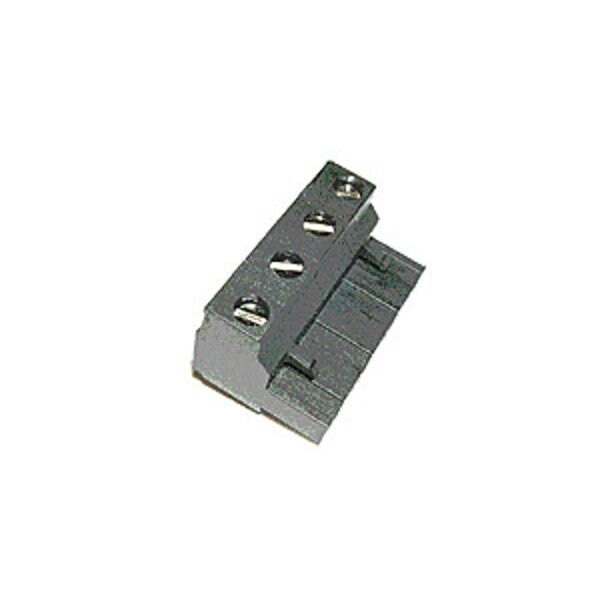

Pluggable Terminal Blocks Sr Bts 7.5Mm 8 Asy R 7.5Mm 8 Asy Ra Plug
| Type | Euro Block |
|---|---|
| Lock to Mating Part | None |
| Pitch - Mating Interface | 7.5 mm |
| UL | E48521 |
| Number of Rows | 1 |
| Flammability | 94V-0 |
| Stackable | Yes |
| Temperature Range - Operating | 110°C |
| Wire Size mm² | 0.05-2.50 |
| Voltage - Maximum | 300 V |
| Polarized to Mating Part | Yes |
| Current - Maximum per Contact | 15 A |
| Entry Angle | 180° Angle |
| Orientation | Angle |
| Wire Size AWG | 12, 14, 16, 18, 20, 22, 24, 26, 28, 30 |
| Pitch - Termination Interface | 7.5 mm |
| Panel Mount | No |
| Circuits (Loaded) | 8 |
| Product Name | Eurostyle Pluggable |
| Component Type | Plug |
| Series | 39371 |
| Package Quantity | 1 |
