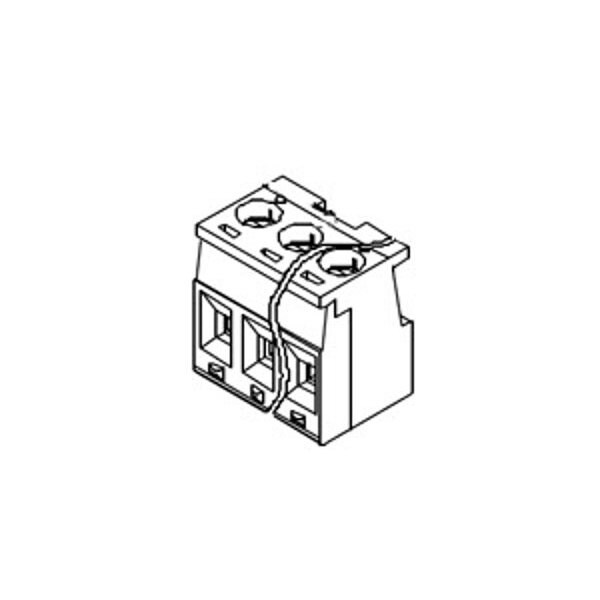

Pluggable Terminal Blocks Sr Hdr .200De 9 Asy Hdr .200De 9 Asy St
| Series | 39980 |
|---|---|
| Type | Euro Block |
| PCB Retention | None |
| Pitch - Mating Interface | 5.08 mm |
| Shrouded | No |
| Number of Rows | 1 |
| Stackable | No |
| UL | E48521 |
| Voltage - Maximum | 300 V |
| Orientation | Vertical |
| Lock to Mating Part | Yes |
| PC Tail Length | 3.81 mm |
| Surface Mount Compatible (SMC) | No |
| PCB Thickness - Recommended | 1.6 mm |
| Current - Maximum per Contact | 10 A |
| Flammability | 94V-0 |
| Material - Plating Termination | Tin |
| Temperature Range - Operating | 140°C |
| Pitch - Termination Interface | 5.08 mm |
| Polarized to Mating Part | Yes |
| Color - Resin | Black |
| Plating min - Termination | 3.81 um |
| Circuits (Loaded) | 9 |
| Panel Mount | No |
| Plating min - Mating | 3.81 um |
| Material - Resin | Nylon |
| Material - Plating Mating | Tin |
| Component Type | PCB Header |
| Product Name | Eurostyle Pluggable |
| Package Quantity | 1 |
