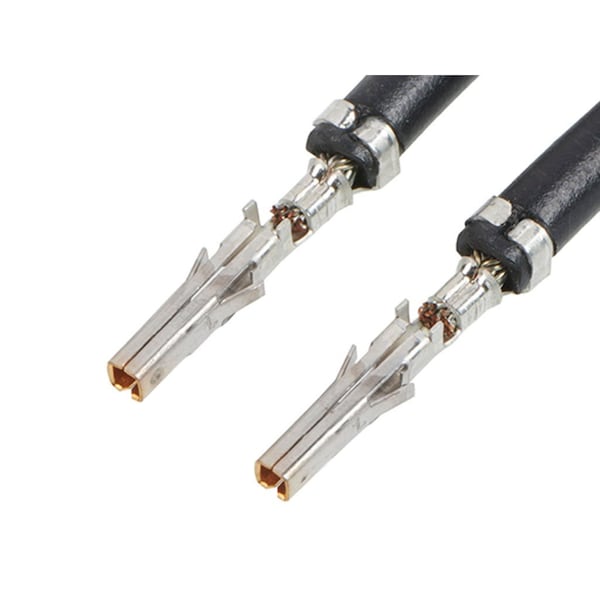

Pre-Crimped Lead Mini-Fit Jr. Female-To-Mini-Fit Jr. Female, Gold (Au) Plating
| Color | Black |
|---|---|
| Series | 215340 |
| Max. Voltage | 600 V |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Length | 150 mm |
| Material | Brass |
| Connector Type | Female-Female |
| Terminal Type | Crimp, Compression |
| Max. Insulation Dia. | 3.1 mm |
| Number of Contacts | 1 |
| Current Rating | 9 A |
| Contact Finish | Gold Plated |
| Wire Range | 16 AWG |
| Terminal Finish | Tin Plated |
| Material - Plating Mating | Gold |
| Cable Length | 150 mm |
| Assembly Configuration | Pre-crimped Lead Only |
| Circuits (Loaded) | 1 |
| Wire Size (AWG) | 16 |
| Current - Maximum per Contact | 9 A |
| Wire Insulation Diameter | 1.80-3.10mm |
| Single Ended | No |
| Connector to Connector | Mini-Fit Jr. Crimp Terminals |
| Material - Plating Termination | Tin |
| Product Name | Mini-Fit Jr. |
| Wire/Cable Type | UL 1015 |
| Package Quantity | 1 |
