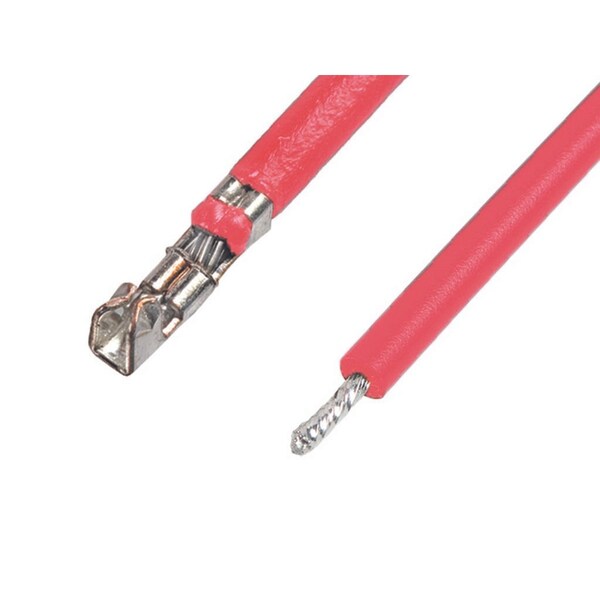

Pre-Crimped Lead Picoblade Female-To-Pigtail, Tin Plated, 75.00Mm Length
| Cable Length | 75 mm |
|---|---|
| Series | 214921 |
| Gender | Female-Pigtail |
| Wire Size AWG | 26 |
| Material - Metal | Phosphor Bronze |
| Wire/Cable Type | UL 1061 |
| Voltage - Maximum | 125V AC (RMS)/DC |
| Current - Maximum per Contact | 1 A |
| Wire Insulation Diameter | 1.04mm max. |
| Material - Plating Mating | Tin |
| Pitch - Mating Interface | 1.25 mm |
| Material - Plating Termination | Tin |
| Single Ended | Yes |
| Color - Resin | Red |
| Circuits (Loaded) | 1 |
| Plating min - Mating | 0.889 um |
| Termination Interface: Style | Compression, Crimp |
| Connector to Connector | PicoBlade Terminal-to-Pigtail |
| Product Name | PicoBlade |
| Assembly Configuration | Pre-crimped Lead Only |
| Package Quantity | 1 |
