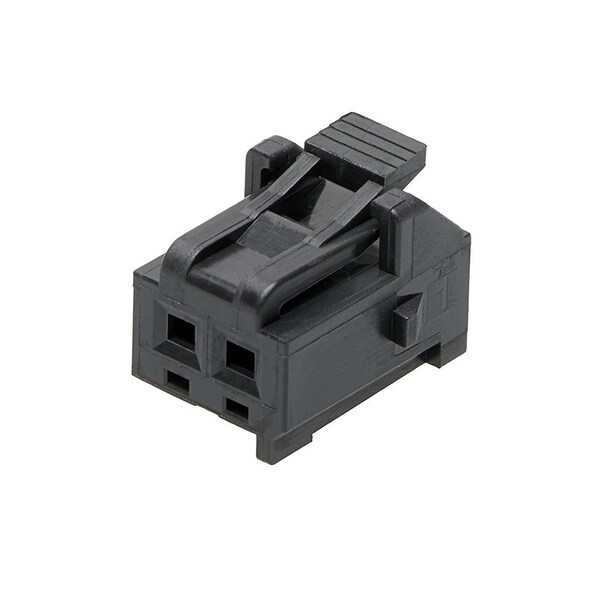

Receptacle Housing For L1Nk 250 - 1X2 Ck
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 207841 |
| Standards | CSA Certified, UL E29179 |
| Application | Power, Wire to-Board |
| Material | Nylon |
| Features | Glow-Wire Capable |
| Hole Center to Center | 2.5 mm |
| Connector Type | Receptacle |
| Max. Temp. | 105 deg C |
| Number of Contacts | 2 |
| Flammability Rating | UL 94V-0 |
| Material - Resin | Nylon |
| Keying to Mating Part | None |
| Stackable | No |
| Pitch - Mating Interface | 2.5 mm |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (maximum) | 2 |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | Yes |
| Flammability | 94V-0 |
| UL | E29179 |
| CSA | 152514 |
| Lock to Mating Part | Yes |
| Product Name | KK Plus |
| Package Quantity | 1 |
