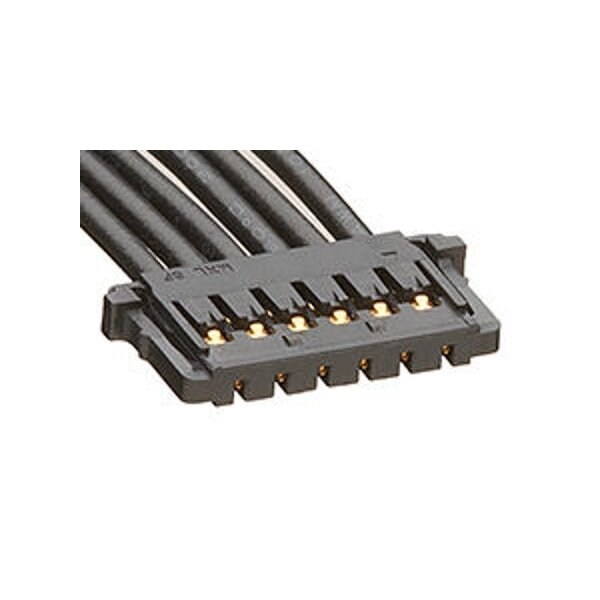

Rectangular Cable Assemblies Cable-Assy Picolock 6 Circuit 450Mm
| Cable Length | 450 mm |
|---|---|
| Gender | Female-Female |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold |
| Lock to Mating Part | Yes |
| Wire Insulation Diameter | 1.10mm |
| Color - Resin | Black |
| Number of Rows | 1 |
| Wire Size AWG | 24 |
| Pitch - Mating Interface | 1.5 mm |
| Material - Plating Termination | Tin |
| Wire/Cable Type | UL 1061 |
| Termination Interface: Style | Compression, Crimp |
| Material - Resin | High Temperature Thermoplastic |
| Voltage - Maximum | 150 V |
| Current - Maximum per Contact | 3 A |
| Circuits (Loaded) | 6 |
| Package Quantity | 1 |
