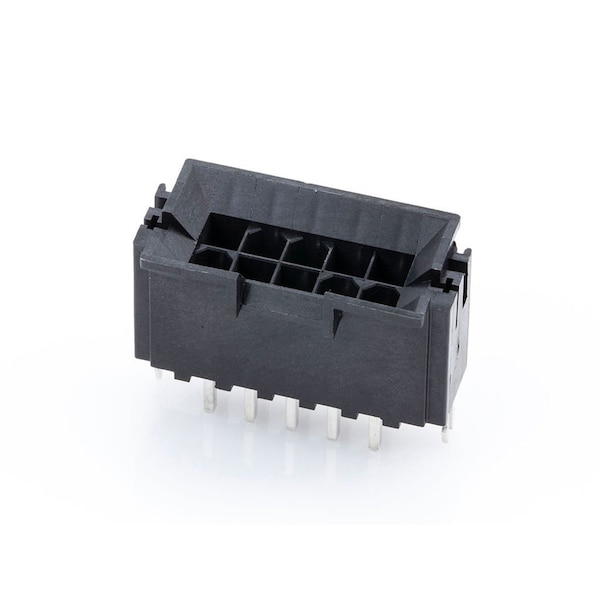

Rectangular Power Connector, 10 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Max. Voltage | 600 V |
| Material | Thermoplastic |
| Hole Center to Center | 4.2 mm |
| Max. Temp. | 240 deg C |
| Terminal Type | Through Hole |
| Standards | CSA Certified, UL E29179 |
| Features | Surface Mount Compatible |
| Current Rating | 13 A |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Tin Plated |
| Number of Contacts | 10 |
| Contact Plating Thickness | 2.54 um |
| Package Quantity | 1 |
