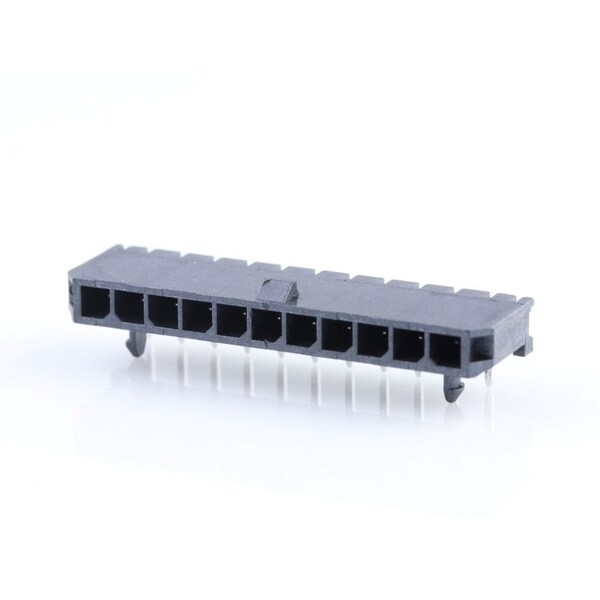

Rectangular Power Connector, 11 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 43650 |
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Material | Thermoplastic |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 3 mm |
| Terminal Type | Through Hole |
| Standards | CSA Certified, UL E29179 |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Number of Contacts | 11 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 um |
| Current Rating | 8.5 A |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Pitch - Mating Interface | 3 mm |
| UL | E29179 |
| PCB Locator | Yes |
| Temperature Range - Operating | -40° to +125°C |
| Material - Plating Termination | Tin |
| Circuits (Loaded) | 11 |
| Material - Plating Mating | Gold |
| Component Type | PCB Header |
| Breakaway | No |
| Flammability | 94V-0 |
| Material - Resin | High Temperature Thermoplastic |
| Durability (mating cycles max) | 30 |
| Max-Cycle | 3 |
| CSA | LR19980 |
| Shrouded | Fully |
| Max-Temp | 260 |
| Orientation | Right Angle |
| Max-Duration | 30 |
| Plating min - Mating | 0.762 um |
| Product Name | Micro-Fit 3.0 |
| Stackable | No |
| Glow-Wire Capable | Yes |
| Material - Metal | Brass |
| Mated Height | 6.98 mm |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Retention | Yes |
| Current - Maximum per Contact | 8.5 A |
| Polarized to PCB | Yes |
| Package Quantity | 1 |
