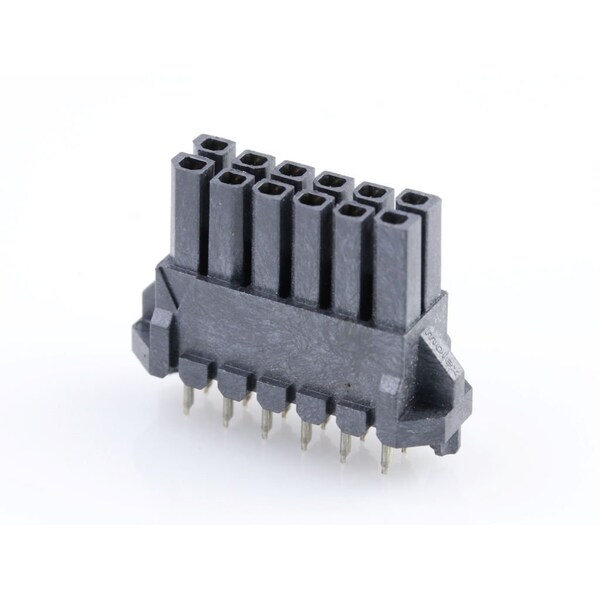

Rectangular Power Connector, 12 Contact(S), Female, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 44769 |
| Max. Voltage | 250 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Terminal Type | Through Hole |
| Hole Center to Center | 3 mm |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Features | Surface Mount Compatible |
| Material | Crystal Polymer |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 12 |
| Contact Finish | Gold Plated |
| Current Rating | 8.5 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 um |
| PCB Retention | Yes |
| Durability (mating cycles max) | 30 |
| Max-Cycle | 1 |
| Flammability | 94V-0 |
| Orientation | Vertical |
| Max-Duration | 5 |
| Circuits (Loaded) | 12 |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 3 mm |
| Glow-Wire Capable | No |
| Polarized to PCB | Yes |
| Polarized to Mating Part | Yes |
| PCB Thickness - Recommended | 1.57 mm |
| Product Name | Micro-Fit BMI |
| Plating min - Mating | 0.381 um |
| PCB Locator | Yes |
| Material - Resin | Liquid Crystal Polymer |
| CSA | LR19980 |
| Material - Metal | Phosphor Bronze |
| UL | E29179 |
| Current - Maximum per Contact | 8.5 A |
| PC Tail Length | 3.4 mm |
| Max-Temp | 260 |
| Component Type | PCB Receptacle |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Gold |
| Package Quantity | 1 |
