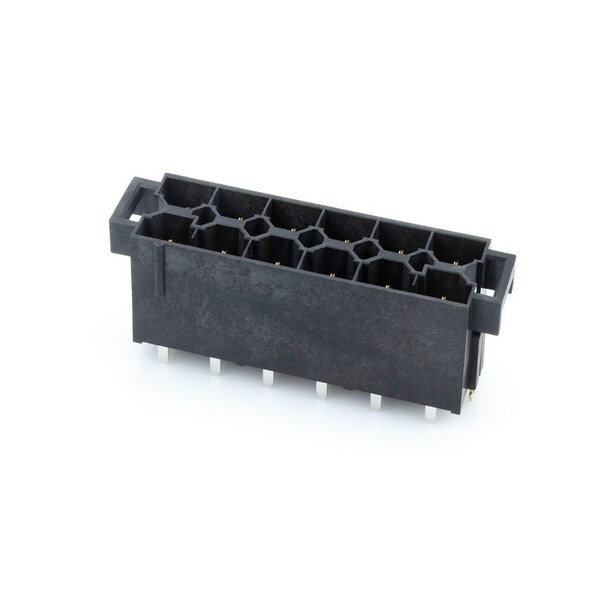

Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 43915 |
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Max. Temp. | 235 deg C |
| Material | Thermoplastic |
| Standards | UL E29179 |
| Hole Center to Center | 1 mm |
| Terminal Type | Through Hole |
| Current Rating | 50 A |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 um |
| Terminal Finish | Tin Plated |
| Number of Contacts | 12 |
| Contact Finish | Gold Plated |
| Plating min - Mating | 0.762 um |
| Max-Temp | 235 |
| Keying to Mating Part | None |
| PCB Thickness - Recommended | 1.57 mm |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | No |
| Circuits (Loaded) | 12 |
| Max-Duration | 30 |
| UL | E29179 |
| Max-Cycle | 3 |
| PCB Locator | Yes |
| Orientation | Vertical |
| Material - Plating Mating | Gold |
| Shrouded | Fully |
| Glow-Wire Capable | No |
| Polarized to Mating Part | Yes |
| Polarized to PCB | Yes |
| Durability (mating cycles max) | 100 |
| Guide to Mating Part | No |
| Material - Resin | High Temperature Thermoplastic |
| Lock to Mating Part | Yes |
| First Mate / Last Break | No |
| Material - Metal | Brass |
| Flammability | 94V-0 |
| PC Tail Length | 3.5 mm |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 10 mm |
| Current - Maximum per Contact | 50 A |
| Component Type | PCB Header |
| PCB Retention | Yes |
| Product Name | Mini-Fit Sr. |
| Breakaway | No |
| Package Quantity | 1 |
