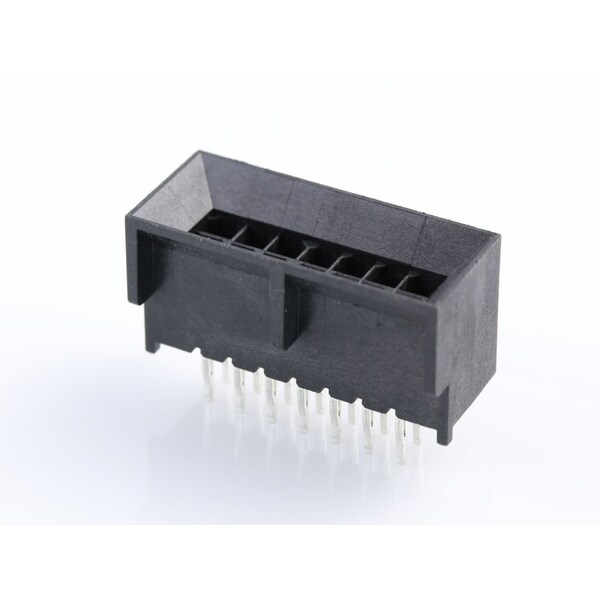

Rectangular Power Connector, 14 Contact(S), Male, Press Fit Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 45280 |
| Max. Voltage | 600 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Hole Center to Center | 3 mm |
| Material | Thermoplastic |
| Terminal Type | Through Hole - Compliant Pin |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 105 deg C |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 5.08 um |
| Flammability Rating | UL 94V-0 |
| Current Rating | 8.5 A |
| Number of Contacts | 14 |
| Contact Finish | Tin Plated |
| Material - Resin | High Temperature Thermoplastic |
| Material - Metal | Alloy |
| PCB Locator | Yes |
| Orientation | Vertical |
| Material - Plating Mating | Tin |
| Temperature Range - Operating | -40° to +105°C |
| Plating min - Mating | 5.08 um |
| Circuits (Loaded) | 14 |
| Glow-Wire Capable | No |
| Lock to Mating Part | None |
| Material - Plating Termination | Tin |
| Stackable | No |
| PCB Retention | Yes |
| Current - Maximum per Contact | 8.5 A |
| Component Type | PCB Header |
| Breakaway | No |
| Shrouded | Fully |
| Guide to Mating Part | Yes |
| Product Name | Micro-Fit BMI CPI |
| Pitch - Mating Interface | 3 mm |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| Flammability | 94V-0 |
| CSA | LR19980 |
| PC Tail Length | 4.8 mm |
| Polarized to PCB | Yes |
| Durability (mating cycles max) | 30 |
| Package Quantity | 1 |
