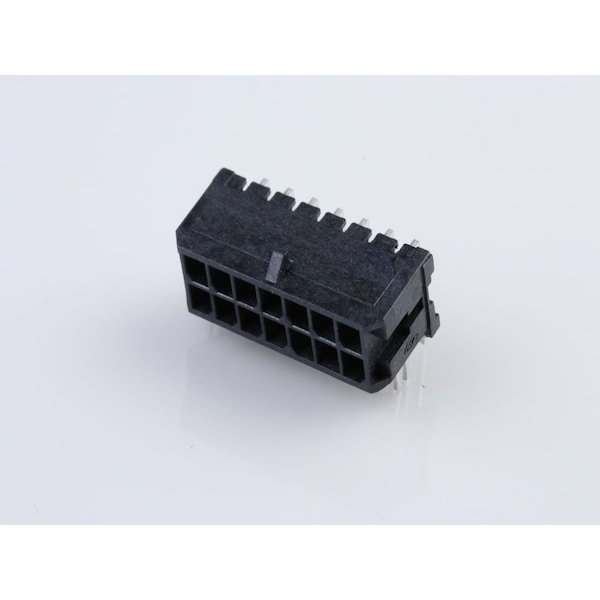

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 43045 |
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Hole Center to Center | 3 mm |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Material | Thermoplastic |
| Max. Temp. | 260 deg C |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Number of Contacts | 14 |
| Contact Plating Thickness | 0.254 um |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Current Rating | 8.5 A |
| Contact Finish | Tin Plated |
| Durability (mating cycles max) | 30 |
| Mated Height | 10.06 mm |
| UL | E29179 |
| Breakaway | No |
| Material - Resin | High Temperature Thermoplastic |
| Orientation | Right Angle |
| Max-Temp | 260 |
| Stackable | No |
| Plating min - Mating | 0.254 um |
| Max-Duration | 30 |
| Current - Maximum per Contact | 8.5 A |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (Loaded) | 14 |
| Glow-Wire Capable | Yes |
| Pitch - Mating Interface | 3 mm |
| Polarized to PCB | Yes |
| Material - Plating Termination | Tin |
| CSA | LR19980 |
| Material - Metal | Brass |
| PCB Retention | Yes |
| Shrouded | Fully |
| Product Name | Micro-Fit 3.0 |
| Component Type | PCB Header |
| Material - Plating Mating | Tin |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Locator | Yes |
| Flammability | 94V-0 |
| Max-Cycle | 3 |
| Package Quantity | 1 |
