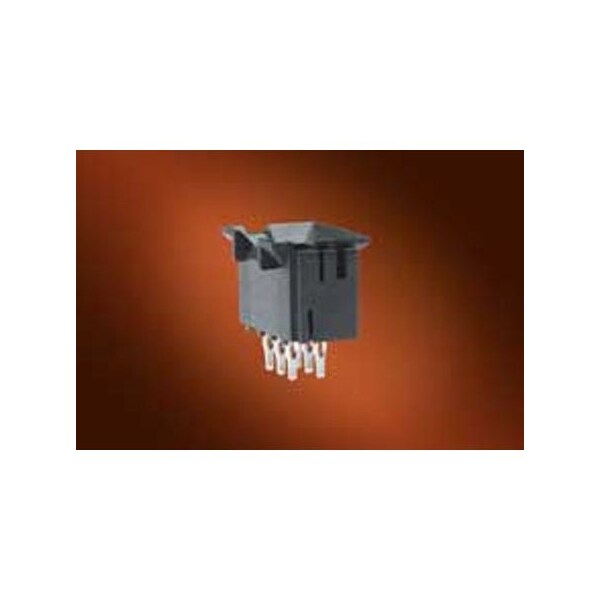

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 44068 |
| Max. Voltage | 600 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Hole Center to Center | 4.2 mm |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Material | Thermoplastic |
| Features | Surface Mount Compatible |
| Max. Temp. | 240 deg C |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Tin Plated |
| Number of Contacts | 14 |
| Contact Plating Thickness | 2.54 um |
| Current Rating | 13 A |
| Terminal Finish | Tin Plated |
| CSA | LR19980 |
| Orientation | Vertical |
| Material - Plating Termination | Tin |
| Polarized to PCB | Yes |
| Max-Duration | 5 |
| Circuits (Loaded) | 14 |
| Breakaway | No |
| Pitch - Mating Interface | 4.2 mm |
| Current - Maximum per Contact | 13 A |
| Durability (mating cycles max) | 30 |
| Max-Cycle | 1 |
| UL | E29179 |
| Flammability | 94V-0 |
| Material - Metal | Brass |
| Stackable | No |
| Material - Plating Mating | Tin |
| Plating min - Mating | 2.54 um |
| Material - Resin | High Temperature Thermoplastic |
| Glow-Wire Capable | No |
| PCB Locator | Yes |
| Product Name | Mini-Fit BMI |
| Max-Temp | 240 |
| Shrouded | Partial |
| PCB Retention | Yes |
| Component Type | PCB Header |
| Temperature Range - Operating | -40° to +105°C |
| PCB Thickness - Recommended | 3.2 mm |
| PC Tail Length | 4.88 mm |
| Package Quantity | 1 |
