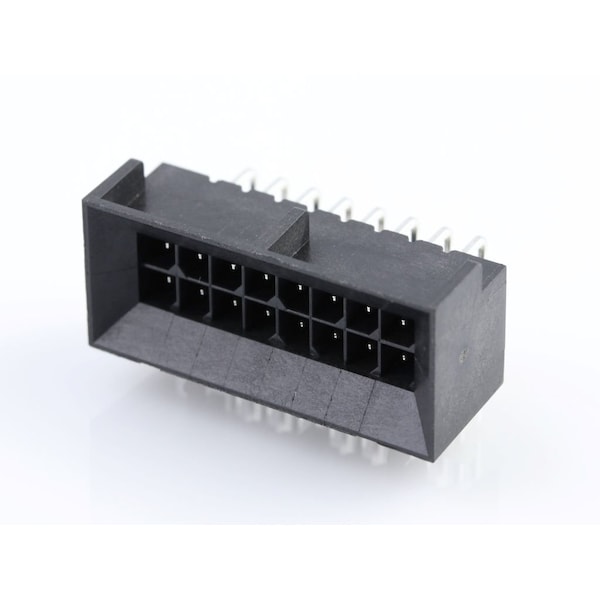

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Max. Voltage | 600 V |
| Features | Surface Mount Compatible |
| Material | Thermoplastic |
| Max. Temp. | 260 deg C |
| Terminal Type | Through Hole |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 3 mm |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Current Rating | 8.5 A |
| Contact Plating Thickness | 0.762 um |
| Contact Finish | Gold Plated |
| Number of Contacts | 16 |
| Package Quantity | 1 |
