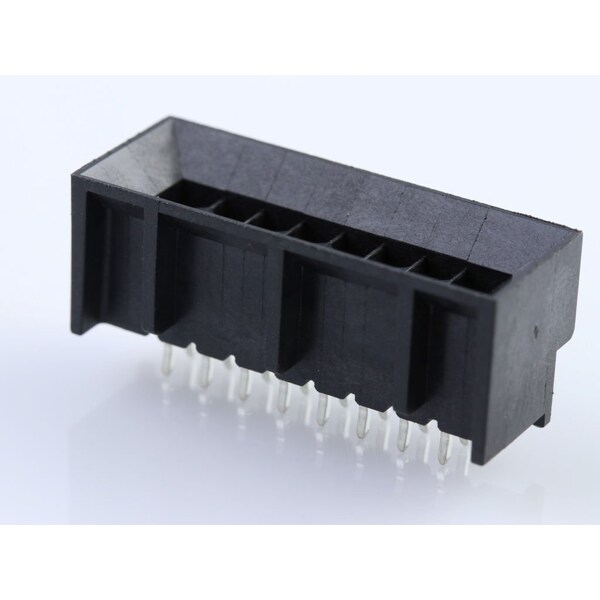

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 44432 |
| Max. Voltage | 250V AC/DC |
| Application | Board-to-Board, Power, Wire-to-Board |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 3 mm |
| Material | Thermoplastic |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Number of Contacts | 16 |
| Current Rating | 8.5 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 um |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Glow-Wire Capable | No |
| Component Type | PCB Header |
| Polarized to Mating Part | Yes |
| Flammability | 94V-0 |
| Temperature Range - Operating | -40° to +105°C |
| Max-Cycle | 1 |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 3 mm |
| Stackable | No |
| Shrouded | Fully |
| Current - Maximum per Contact | 8.5 A |
| Durability (mating cycles max) | 30 |
| UL | E29179 |
| Circuits (Loaded) | 16 |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Locator | Yes |
| Material - Metal | Brass |
| Material - Plating Mating | Gold |
| Material - Resin | Nylon |
| Max-Temp | 260 |
| Product Name | Micro-Fit BMI |
| Max-Duration | 5 |
| Voltage - Maximum | 250V AC (RMS)/DC |
| CSA | LR19980 |
| Orientation | Vertical |
| Plating min - Mating | 0.381 um |
| Polarized to PCB | Yes |
| Breakaway | No |
| PC Tail Length | 3.3 mm |
| PCB Retention | Yes |
| Package Quantity | 1 |
