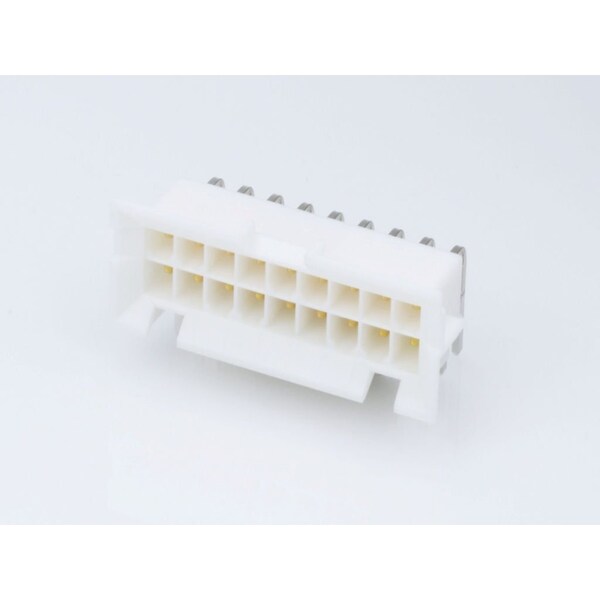

Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle
| Color | Natural |
|---|---|
| Number of Rows | 2 |
| Series | 42404 |
| Max. Voltage | 600 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Standards | CSA Certified, UL E29179 |
| Material | Nylon |
| Hole Center to Center | 4.2 mm |
| Max. Temp. | 240 deg C |
| Terminal Type | Through Hole |
| Current Rating | 13 A |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 um |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Number of Contacts | 18 |
| Max-Temp | 240 |
| UL | E29179 |
| Polarized to Mating Part | Yes |
| Material - Plating Termination | Tin |
| PCB Locator | Yes |
| Polarized to PCB | Yes |
| Max-Duration | 5 |
| Material - Metal | Brass |
| CSA | LR19980 |
| Breakaway | No |
| Temperature Range - Operating | -40° to +105°C |
| PC Tail Length | 3.3 mm |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 4.2 mm |
| Material - Plating Mating | Gold |
| Orientation | Right Angle |
| Product Name | Mini-Fit BMI |
| Guide to Mating Part | Yes |
| Flammability | 94V-0 |
| Durability (mating cycles max) | 30 |
| Max-Cycle | 1 |
| Color - Resin | Natural |
| PCB Retention | Yes |
| Material - Resin | Nylon |
| Circuits (Loaded) | 18 |
| Component Type | PCB Header |
| Glow-Wire Capable | No |
| Plating min - Mating | 0.762 um |
| Shrouded | Partial |
| Current - Maximum per Contact | 13 A |
| PCB Thickness - Recommended | 1.8 mm |
| Stackable | No |
| Package Quantity | 1 |
