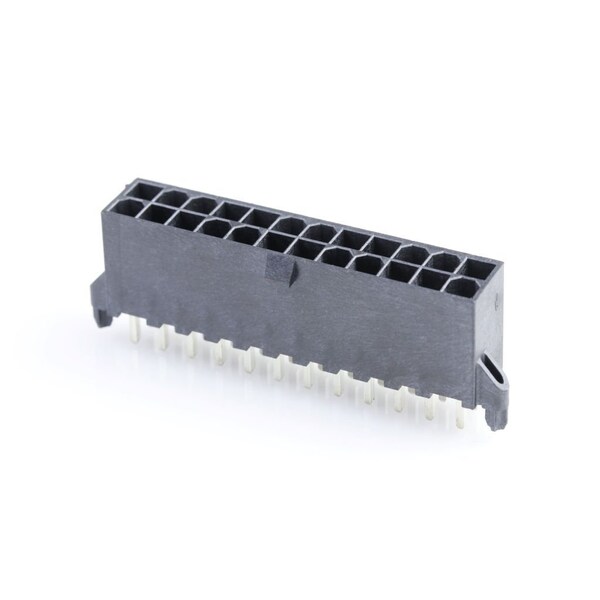

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 2 |
| Series | 46207 |
| Max. Voltage | 600V AC/DC |
| Application | Board-to-Board, Power, Wire-to-Board |
| Hole Center to Center | 4.2 mm |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Terminal Type | Through Hole |
| Max. Temp. | 265 deg C |
| Material | Thermoplastic |
| Standards | CSA Certified, UL E29179 |
| Current Rating | 13 A |
| Contact Finish | Matte Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 24 |
| Terminal Finish | Matte Tin Plated |
| Component Type | PCB Header |
| Orientation | Vertical |
| Breakaway | No |
| Circuits (Loaded) | 24 |
| Polarized to PCB | Yes |
| Durability (mating cycles max) | 100 |
| UL | E29179 |
| Max-Cycle | 3 |
| Material - Plating Termination | Matte Tin |
| Pitch - Mating Interface | 4.2 mm |
| Product Name | Mini-Fit Jr. |
| Stackable | No |
| Current - Maximum per Contact | 13 A |
| Glow-Wire Capable | Yes |
| PC Tail Length | 5.26 mm |
| Shrouded | Fully |
| First Mate / Last Break | No |
| Max-Duration | 30 |
| PCB Retention | Yes |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Temperature Range - Operating | -40° to +105°C |
| Lock to Mating Part | Yes |
| Material - Plating Mating | Matte Tin |
| Flammability | 94V-0 |
| Polarized to Mating Part | Yes |
| Max-Temp | 265 |
| Material - Resin | High Temperature Thermoplastic |
| Material - Metal | Brass |
| CSA | LR19980 |
| PCB Locator | Yes |
| PCB Thickness - Recommended | 3.18 mm |
| Guide to Mating Part | No |
| Package Quantity | 1 |
