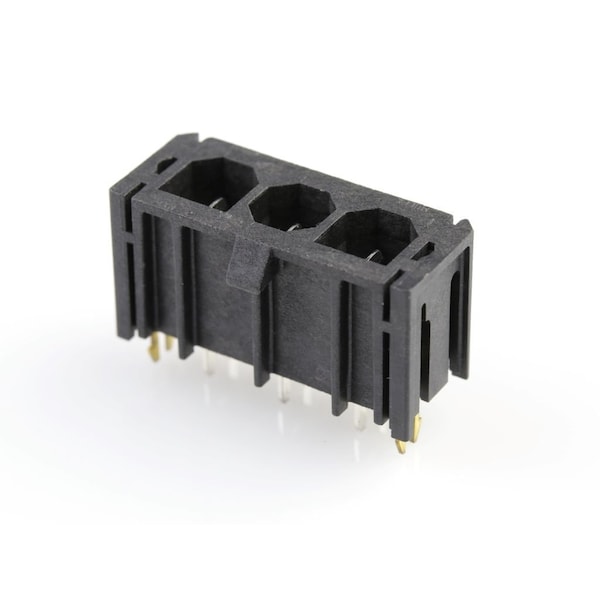

Rectangular Power Connector, 3 Contact(S), Male, Solder Terminal, Receptacle
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Series | 43160 |
| Max. Voltage | 600 V |
| Application | Power, Wire to-Board |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 7.5 mm |
| Terminal Type | Through Hole |
| Material | Thermoplastic |
| Max. Temp. | 235 deg C |
| Features | Glow-Wire Capable |
| Contact Plating Thickness | 0.889 um |
| Current Rating | 18 A |
| Terminal Finish | Tin Plated |
| Contact Finish | Tin Plated |
| Number of Contacts | 3 |
| Flammability Rating | UL 94V-0 |
| Guide to Mating Part | No |
| CSA | LR19980 |
| Shrouded | Fully |
| Max-Temp | 235 |
| PCB Thickness - Recommended | 1.6 mm |
| Glow-Wire Capable | Yes |
| Max-Duration | 5 |
| Durability (mating cycles max) | 25 |
| Pitch - Mating Interface | 7.5 mm |
| Breakaway | No |
| First Mate / Last Break | No |
| Orientation | Vertical |
| Current - Maximum per Contact | 18 A |
| Temperature Range - Operating | -40° to +75°C |
| PCB Locator | Yes |
| PC Tail Length | 3.81 mm |
| Material - Metal | Brass |
| PCB Retention | Yes |
| UL | E29179 |
| Stackable | No |
| Lock to Mating Part | Yes |
| Circuits (Loaded) | 3 |
| Material - Resin | High Temperature Thermoplastic |
| Keying to Mating Part | Yes |
| Plating min - Mating | 0.889 um |
| Material - Plating Termination | Tin |
| Product Name | Sabre |
| Component Type | PCB Header |
| Flammability | 94V-0 |
| Polarized to Mating Part | Yes |
| Material - Plating Mating | Tin |
| Polarized to PCB | Yes |
| Package Quantity | 1 |
