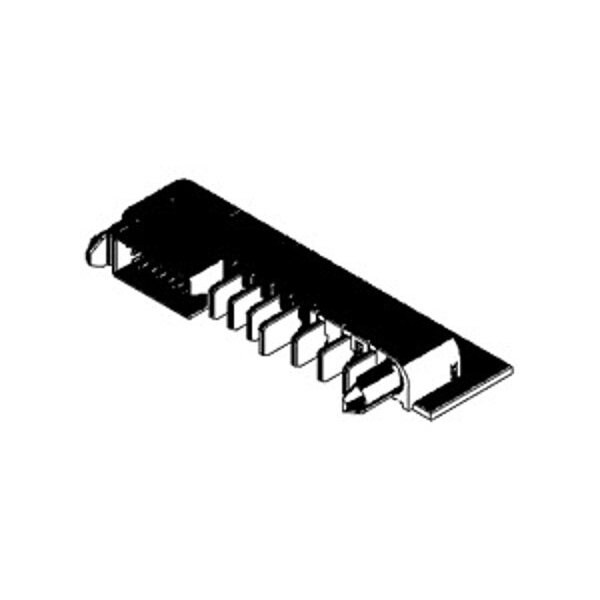

Rectangular Power Connector, 31 Contact(S), Male, Solder Terminal, Plug
| Color | Black |
|---|---|
| Max. Voltage | 600 V AC, 250 V DC |
| Application | Signal, Power, Board to-Board |
| Series | 46437 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2.54 mm, 5.5 mm, 7.5 mm |
| Material | High Temperature Thermoplastic |
| Max. Temp. | 105 deg C |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Number of Contacts | 31 |
| Current Rating | 2.5 A, 60 A |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Product Name | EXTreme Ten60Power |
| Durability (mating cycles max) | 200 |
| Number of Rows | 1, 3 |
| Material - Plating Termination | Tin |
| UL | E29179 |
| Current - Maximum per Contact | 2.5 A, 60 A |
| (p)ower-(s)ignal Configuration | 3p - 4p - 24s |
| Breakaway | No |
| Polarized to Mating Part | Yes |
| Material - Metal | Copper |
| Lock to Mating Part | No |
| Pitch - Mating Interface | 2.54 mm, 5.5 mm, 7.5 mm |
| PCB Thickness - Recommended | 1.58 mm |
| Voltage - Maximum | 600V AC / 250V DC |
| PCB Locator | Yes |
| Component Type | PCB Header |
| Flammability | 94 V to 0 |
| CSA | LR19980 |
| PCB Retention | None |
| Polarized to PCB | Yes |
| PC Tail Length | 2.84 mm |
| Keying to Mating Part | None |
| First Mate / Last Break | No |
| Material - Resin | High Temperature Thermoplastic |
| Temperature Range - Operating | -40° to +105°C |
| Glow-Wire Capable | No |
| Mated Height | 18 mm |
| Shrouded | No |
| Stackable | No |
| Guide to Mating Part | Yes, Side |
| Material - Plating Mating | Gold |
| Orientation | Right Angle |
| Circuits (Loaded) | 31 |
| Package Quantity | 1 |
