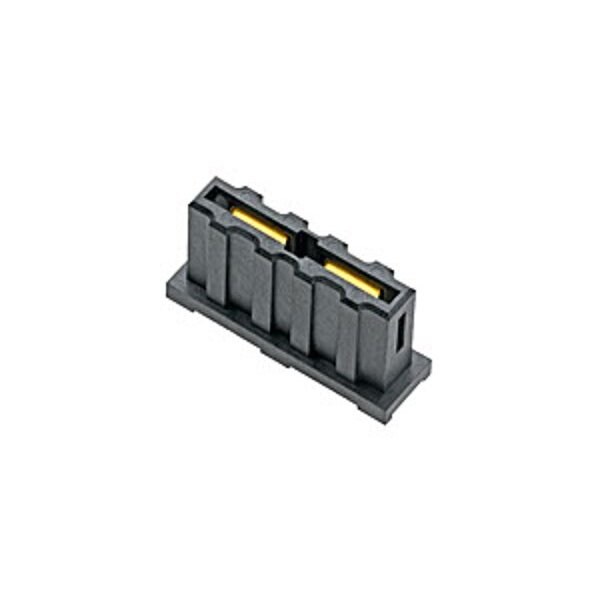

Rectangular Power Connector, 4 Contact(S), Female, Press Fit Terminal, Receptacle
| Color | Black |
|---|---|
| Max. Voltage | 250 V DC |
| Application | Backplane, Midplane |
| Series | 78232 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2 mm, 7.4 mm |
| Material | High Temperature Thermoplastic |
| Features | Surface Mount Compatible |
| Terminal Type | Through Hole - Compliant Pin |
| Max. Temp. | 85 deg C |
| Current Rating | 80 A |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 4 |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Orientation | Vertical |
| PCB Retention | Yes |
| Product Name | GbX I-Trac |
| PC Tail Length | 2.41 mm |
| PCB Locator | No |
| CSA | LR19980 |
| Stackable | No |
| UL | E29179 |
| Polarized to PCB | No |
| Guide to Mating Part | No |
| Data Rate | 12 Gbps |
| Number of Pairs | 6 |
| Material - Plating Termination | Tin |
| PCB Thickness - Recommended | 1.6 mm |
| Temperature Range - Operating | -20° to +85°C |
| Current - Maximum per Contact | 80 A |
| Number of Columns | 1 |
| Shielded | No |
| Durability (mating cycles max) | 100 |
| Material - Metal | High Performance Alloy |
| Circuits Detail | 80 Amps (40/Split Blade) |
| Material - Resin | High Temperature Thermoplastic |
| Keying to Mating Part | None |
| Component Type | Power Receptacle |
| Flammability | 94 V to 0 |
| Pitch - Mating Interface | 2 mm, 7.4 mm |
| Material - Plating Mating | Gold |
| First Mate / Last Break | No |
| Package Quantity | 1 |
