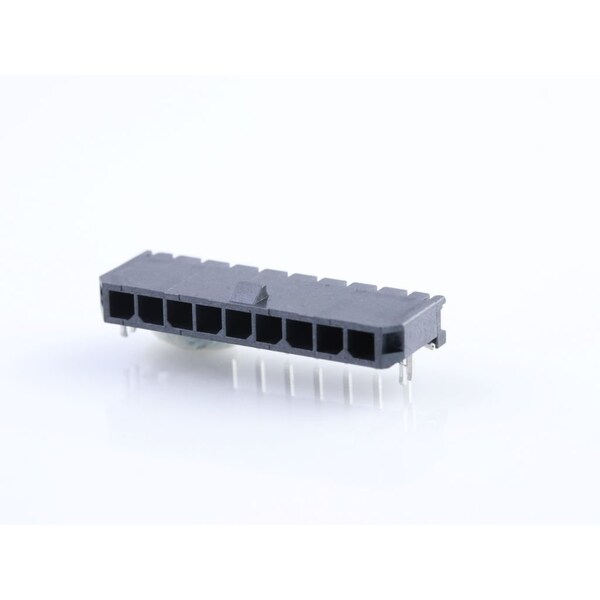

Conector de energía rectangular con 9 contactos, terminal macho para soldar, ideal para aplicaciones industriales y electrónicas que requieren una conexión segura y confiable.
| Color | Black |
|---|---|
| Number of Rows | 1 |
| Max. Voltage | 600 V |
| Material | Thermoplastic |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Terminal Type | Through Hole |
| Hole Center to Center | 3 mm |
| Features | Glow-Wire Capable; Surface Mount Compatible |
| Current Rating | 8.5 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 um |
| Number of Contacts | 9 |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Package Quantity | 1 |
