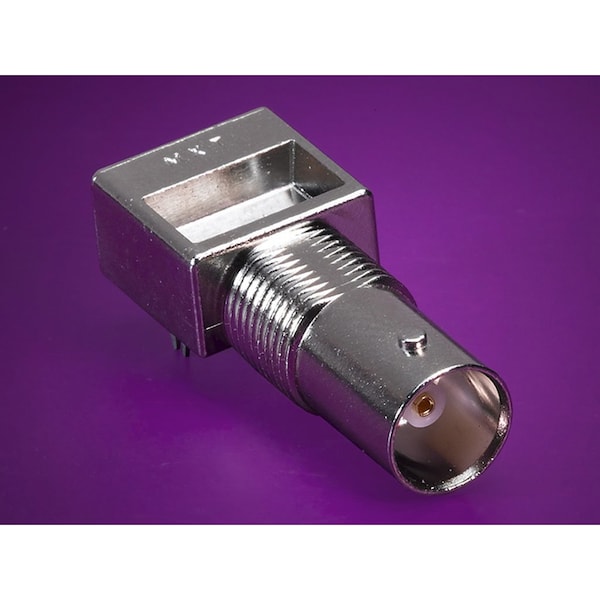

Rf Bnc Connector, 1 Contact(S), Female, Panel Mount, Board And Panel Mount, Solder Terminal,
| Style - Connector | Right Angle |
|---|---|
| Series | 73101 |
| Type | Jack |
| Standards | CSA LR19980; UL E107635 |
| Max-Temp | 245 |
| Keying to Mating Part | None |
| UL | E107635 |
| Product Name | BNC |
| Power / Voltage | VOLTAGE: 500 Vrms@Sea Level |
| Impedance | 75 ohms |
| Flammability | 94V-2 |
| PCB Mounting | Through Hole |
| Max-Cycle | 3 |
| Style | PCB |
| PCB Thickness - Recommended | 3.2 mm |
| CSA | LR19980 |
| Reverse Polar | No |
| Panel Mount Method | Bulkhead |
| Frequency | 2 GHz |
| Package Quantity | 1 |
