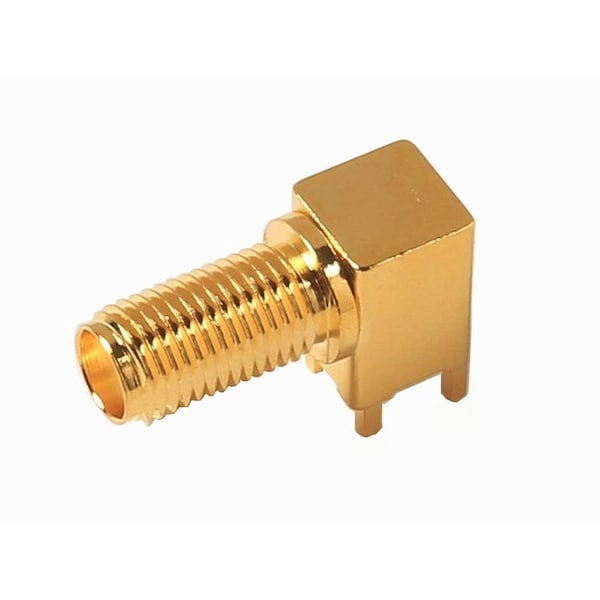

Conectores RF / Conectores coaxiales de 50 ohmios, Jack SMA, en ángulo recto para PCB, con baño de oro (Au) flash.
| Impedance | 50Ω |
|---|---|
| Series | 73251 |
| Connector Type | Jack |
| Max. Temp. | 260 deg C |
| Type | Subminiature |
| Orientation | Right Angle |
| Max-Cycle | 2 |
| Keying to Mating Part | None |
| Power / Voltage | VOLTAGE: 500 Vrms@Sea Level |
| Reverse Polar | No |
| Panel Mount Method | Bulkhead |
| Style | PCB |
| Product Name | SMA |
| PCB Mounting | Through Hole |
| Max-Duration | 10 |
| Max-Temp | 260 |
| Frequency | 18 GHz |
| Package Quantity | 1 |
