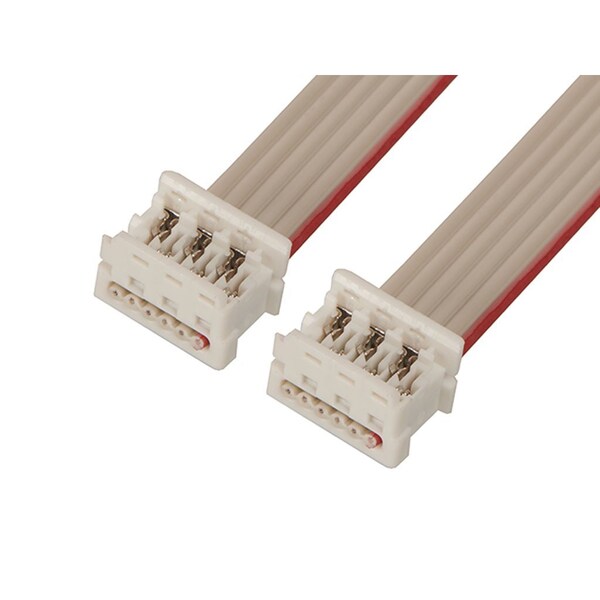

Ribbon Cables / Idc Cables 6Ckt Picoflex 160Mm Long
| Series | 92315 |
|---|---|
| Type | Cable Assembly |
| Cable Length | 160 mm |
| Gender | Female-Female |
| Wire Size AWG | 28 |
| Circuits (Loaded) | 6 |
| Number of Rows | 2 |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Tin |
| Pitch - Mating Interface | 1.27 mm |
| Plating min - Termination | 2.032 um |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 1.2 A |
| Plating min - Mating | 2.032 um |
| Wire/Cable Type | PVC, Ribbon Cable |
| Voltage - Maximum | 250 V |
| Material - Resin | Polyester |
| Color - Resin | Natural |
| Termination Interface: Style | IDT, Pierce |
| Single Ended | No |
| Product Name | Picoflex |
| Lock to Mating Part | None |
| Connector to Connector | Picoflex IDT-to-IDT |
| Waterproof / Dustproof | No |
| Assembly Configuration | Dual Ended Connectors |
| Package Quantity | 1 |
