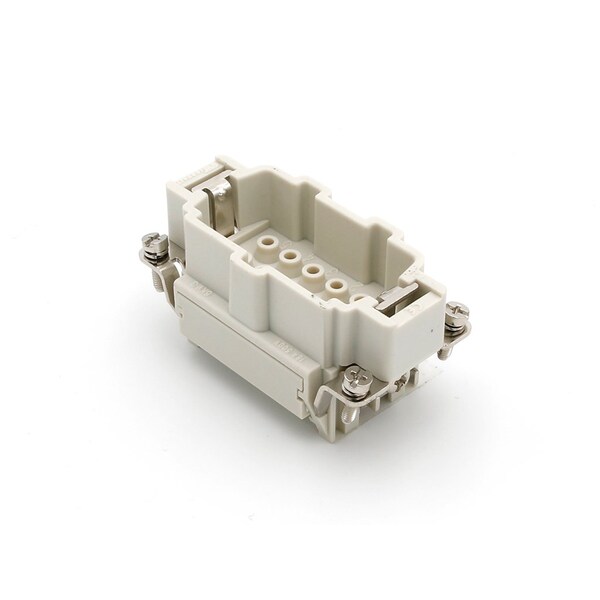

S-EC insert 10P Male crimp terminal
| Polarized to Mating Part | Yes |
|---|---|
| Gender | Male |
| Insert Color | Grey |
| CSA | 256883 |
| Number of Rows | 2 |
| Current - Maximum per Contact | 16 A |
| Material - Insert | Polycarbonate |
| Flammability | UL 94V-0 |
| UL | E249674 |
| Durability (mating cycles max) | 700 |
| Voltage - Maximum | 500V |
| Temperature Range - Operating | -40° to +125°C |
| Poles | 10 |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Component Type | Inserts - Crimp Contact |
| Component Size | 10B «57X27» |
| Product Name | GWconnect |
| Series | 93601 |
| Insert Series | S-EC |
| Package Quantity | 1 |
