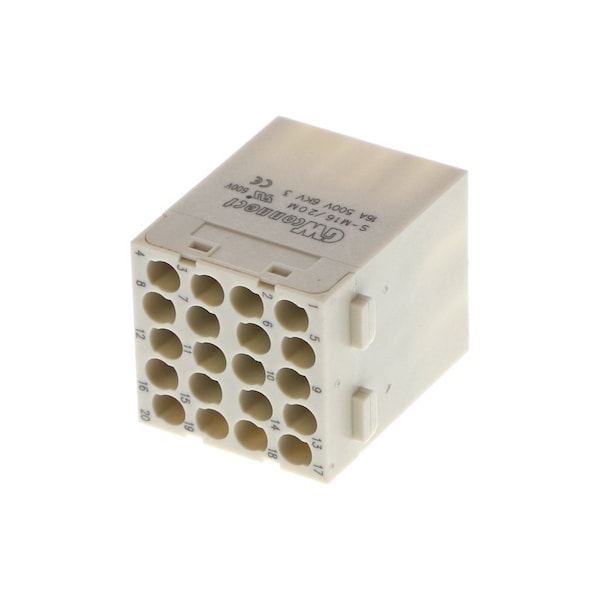

S-M 16/20 M Ins Crp 20P 16A 500V
| Product Name | GWconnect |
|---|---|
| Temperature Range - Operating | -40° to +125°C |
| Insert Series | S-M16/20 |
| Component Type | Inserts - Crimp Contact |
| Poles | 20 |
| Gender | Male |
| Voltage - Maximum | 400 V |
| Current - Maximum per Contact | 16 A |
| Durability (mating cycles max) | 500 |
| UL | E249674 |
| Component Size | «34.2» x 29.2» |
| Series | 93601 |
| Standard | CSA C22.2 NO. 182.3, EN 60664-1, EN 61984, UL 1977 |
| Polarized to Mating Part | Yes |
| Number of Rows | 5 |
| Material - Insert | Polycarbonate |
| Insert Color | Grey |
| Package Quantity | 1 |
