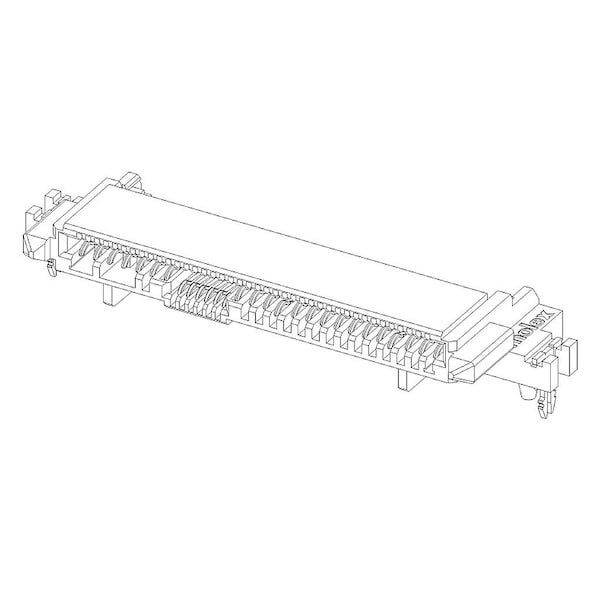

Receptor de montaje superficial SAS/PCIe R/A con 0.76 micras de recubrimiento de oro y 68 contactos.
| Color | Black |
|---|---|
| Item | Receptacle |
| Max. Voltage | 30 V |
| Application | Board-to-Board |
| Series | 78776 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 260 deg C |
| Connector Type | Female |
| Sub-Category | Connectors |
| Terminal Type | Surface Mount |
| Material | Liquid Crystal Polymer |
| Features | Surface Mount Compatible |
| Hole Center to Center | 0.8 mm, 1.27 mm |
| Flammability Rating | UL 94V-0 |
| Current Rating | 1.5 A |
| Number of Contacts | 68 |
| Number of Rows | 2 |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.762 µm |
| Max-Temp | 260 |
| UL | E29179 |
| Durability (mating cycles max) | 500 |
| PCB Locator | Yes |
| CSA | LR19980 |
| Flammability | 94 V to 0 |
| Orientation | Right Angle |
| Material - Resin | Liquid Crystal Polymer |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Retention | Yes |
| Material - Metal | Copper Alloy |
| Lock to Mating Part | None |
| Polarized to PCB | Yes |
| Plating min - Mating | 0.762 um |
| Max-Duration | 10 |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 1.5 A |
| Keying to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Circuits Detail | 53, 15 |
| Polarized to Mating Part | Yes |
| Product Name | SAS-3, PCIe-3,U.2 |
| Temperature Range - Operating | 0° to +55°C |
| Pitch - Mating Interface | 0.8 mm, 1.27 mm |
| Max-Cycle | 1 |
| Package Quantity | 1 |
