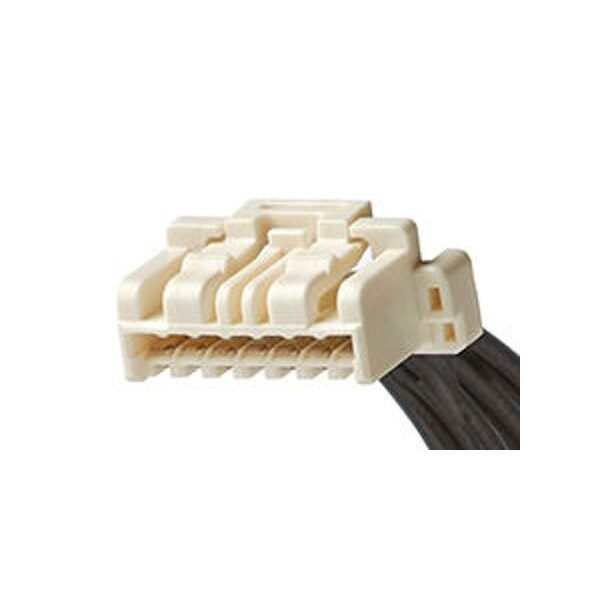

Cables de sensor / Cables de actuador Clickmate 7Ckt Cbl Assy Sr 50mm Beige
| Cable Length | 50 mm |
|---|---|
| Circuits (Loaded) | 7 |
| Current - Maximum per Contact | 1.5 A |
| Color - Resin | Beige |
| Single Ended | No |
| Termination Interface: Style | Crimp or Compression |
| Material - Metal | Copper Alloy |
| Material - Resin | PBT |
| Voltage - Maximum | 100V AC (RMS)/DC |
| Gender | Male-Male |
| Plating min - Termination | 0.406 um |
| Material - Plating Mating | Tin |
| Wire/Cable Type | UL 1061 |
| Pitch - Mating Interface | 1.5 mm |
| Number of Rows | 1 |
| Material - Plating Termination | Tin |
| Wire Size AWG | 24 |
| Wire Insulation Diameter | 1.10mm |
| Plating min - Mating | 0.406 um |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
