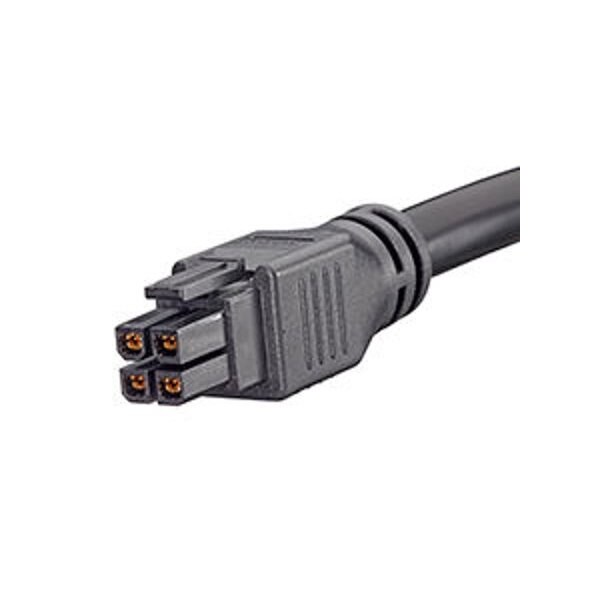

Cables de sensor / cables de actuador Megafit 4Ckt Cbl Ay Dr Ovrmld 0.5M Negro
| Cable Length | 0.5 m |
|---|---|
| Material - Plating Mating | Gold |
| Wire Size AWG | 12 |
| Wire/Cable Type | UL 2464 |
| Material - Metal | Copper Alloy |
| Single Ended | No |
| Wire Insulation Diameter | 10.30mm |
| Number of Rows | 2 |
| Material - Plating Termination | Matte Tin |
| Voltage - Maximum | 300 V |
| Lock to Mating Part | Yes |
| Pitch - Mating Interface | 5.7 mm |
| Circuits (Loaded) | 4 |
| Plating min - Mating | 0.381 um |
| Termination Interface: Style | Crimp or Compression |
| Material - Resin | PBT |
| Plating min - Termination | 0.381 um |
| Gender | Female-Female |
| Current - Maximum per Contact | 18.4 A |
| Color - Resin | Black |
| Package Quantity | 1 |
