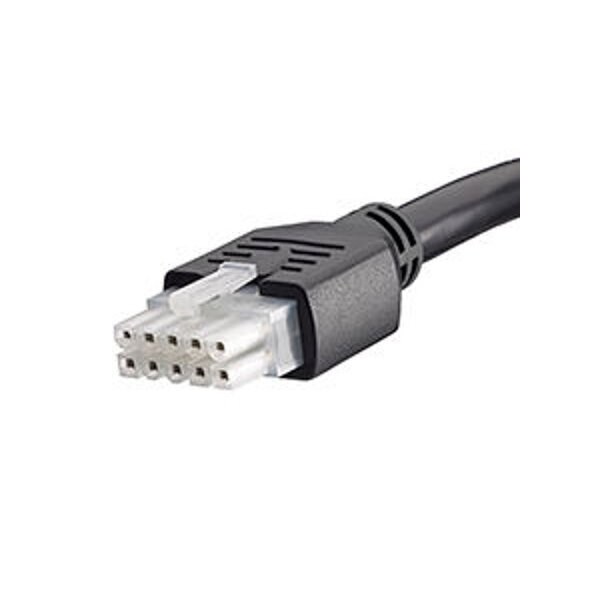

Cables de sensor / cables de actuador Minifit 10Ckt Cbl Ay Dr Ovrmld 0.5M Negros.
| Cable Length | 0.5 m |
|---|---|
| Series | 245135 |
| Type | Overmolded Assembly |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Voltage - Maximum | 300 V |
| Pitch - Mating Interface | 4.2 mm |
| Lock to Mating Part | Yes |
| Wire Insulation Diameter | 5.40mm |
| Color - Resin | Black |
| Gender | Female-Female |
| Plating min - Mating | 2.54 um |
| Wire Size AWG | 18 |
| Current - Maximum per Contact | 8.4 A |
| Material - Plating Mating | Tin |
| Number of Rows | 2 |
| Material - Plating Termination | Tin |
| Single Ended | No |
| Material - Resin | Nylon |
| Termination Interface: Style | Crimp or Compression |
| Circuits (Loaded) | 10 |
| Plating min - Termination | 2.54 um |
| Wire/Cable Type | UL 2464 |
| Material - Metal | Copper Alloy |
| Assembly Configuration | Dual Ended Connectors |
| Connector to Connector | Mini-Fit Jr. Both Ends |
| Product Name | Mini-Fit Jr. |
| Overmolded | Yes |
| Package Quantity | 1 |
