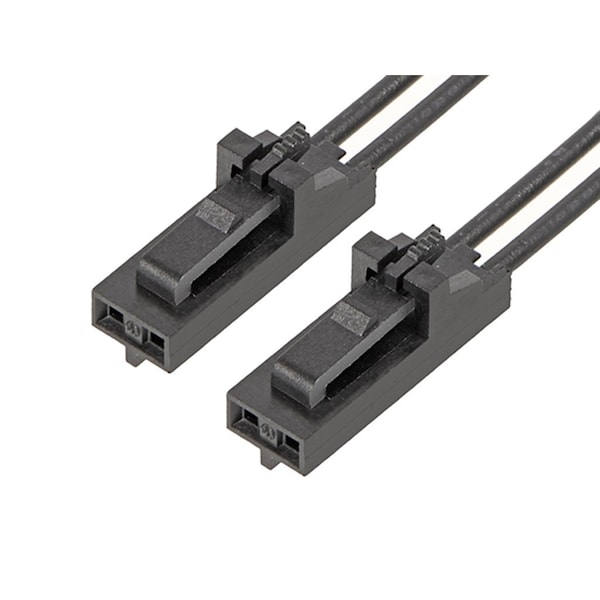

Sl Positive Lock R-R 2Ckt 50Mm Sn
| Cable Length | 50 mm |
|---|---|
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 3 A |
| Voltage - Maximum | 600V AC/DC |
| Color - Resin | Black |
| Wire Insulation Diameter | 1.63mm max. |
| Number of Rows | 1 |
| Material - Metal | Phosphor Bronze |
| Gender | Female-Female |
| Circuits (Loaded) | 2 |
| Material - Plating Mating | Tin |
| Wire Size AWG | 22 |
| Termination Interface: Style | Compression, Crimp |
| Material - Resin | Polyester Alloy |
| Material - Plating Termination | Tin |
| Wire/Cable Type | UL 11028 |
| Pitch - Mating Interface | 2.54 mm |
| Package Quantity | 1 |
