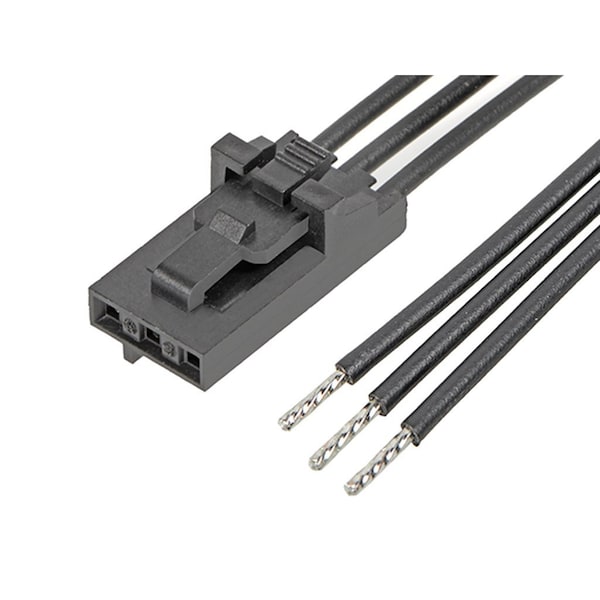

Sl Positive Lock R-S 3Ckt 150Mm Sn
| Cable Length | 150 mm |
|---|---|
| Termination Interface: Style | Compression, Crimp |
| Circuits (Loaded) | 3 |
| Current - Maximum per Contact | 3 A |
| Number of Rows | 1 |
| Material - Resin | Polyester Alloy |
| Wire Size AWG | 22 |
| Wire Insulation Diameter | 1.63mm max. |
| Pitch - Mating Interface | 2.54 mm |
| Single Ended | Yes |
| Material - Metal | Phosphor Bronze |
| Gender | Female-Pigtail |
| Material - Plating Termination | Tin |
| Lock to Mating Part | Yes |
| Voltage - Maximum | 600V AC/DC |
| Wire/Cable Type | UL 11028 |
| Color - Resin | Black |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
