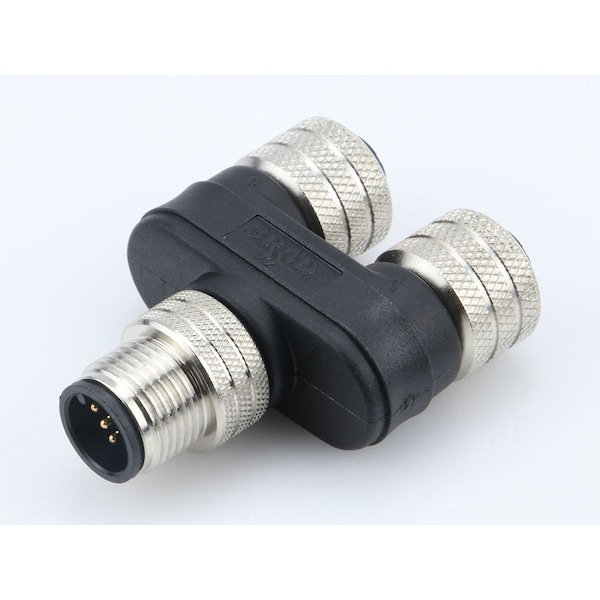

SPL YS M12 5P AC MA FE FE se traduce como: SPL YS M12 5P AC MA FE FE.
| IP Rating | IP67 |
|---|---|
| Keyway | Single |
| Type | Splitter - Solid Body |
| Drop Gender | Male |
| Right Trunk Connector | Micro-Change (M12) |
| Drop Connector | Micro-Change (M12) |
| Material - Coupling Nut | Nickel-plated Brass |
| Left Trunk Gender | Female |
| Current - Maximum per Contact | 4 A |
| Temperature Range - Operating | -25°C to +90°C |
| Poles | 5 |
| Voltage - Maximum | 30V AC / 36V DC |
| Right Trunk Gender | Female |
| Left Trunk Connector | Micro-Change (M12) |
| LED Indicator | No |
| Material - Connector Body | PUR |
| Series | 120068 |
| Package Quantity | 1 |
