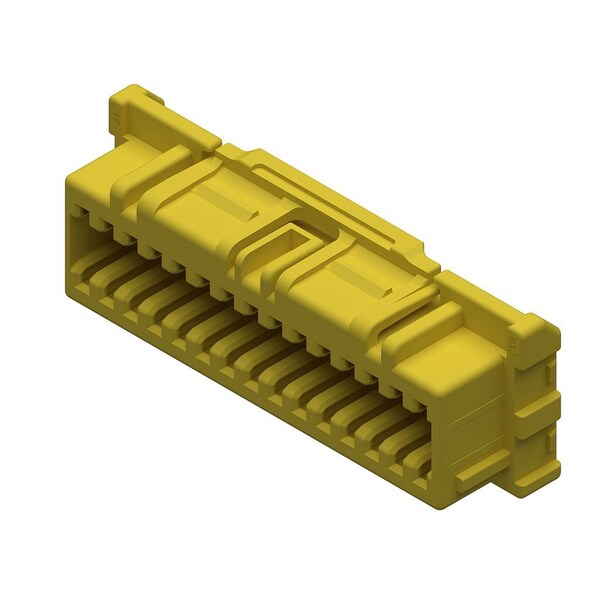

Spot-On Wire-To-Board Receptacle Housing, 2.00Mm Pitch, Dual Row, 30 Circuits
| Color | Yellow |
|---|---|
| Number of Rows | 2 |
| Series | 201196 |
| Application | Signal, Wire-to-Board |
| Material | PBT |
| Connector Type | Receptacle |
| Hole Center to Center | 2 mm |
| Max. Temp. | 105 deg C |
| Number of Contacts | 30 |
| Product Name | Spot-On |
| Keying to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Material - Resin | PBT |
| Pitch - Mating Interface | 2 mm |
| Temperature Range - Operating | -40° to +105°C |
| Glow-Wire Capable | No |
| Circuits (maximum) | 30 |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
