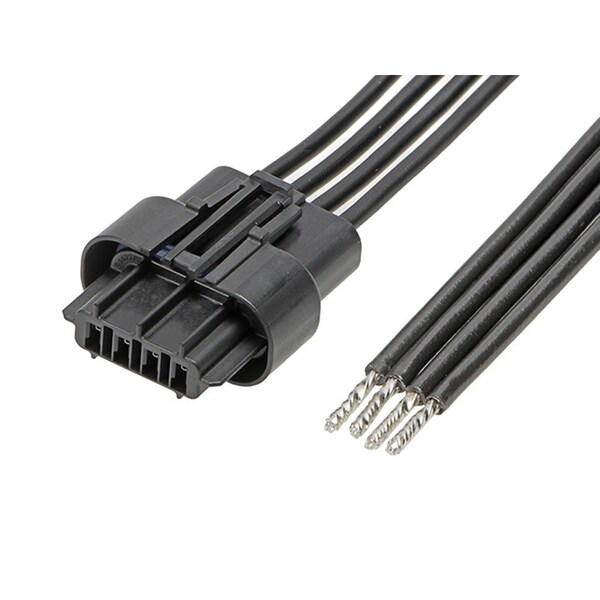

Squba 3.6 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly
| Color | Black |
|---|---|
| Series | 216621 |
| Max. Voltage | 600 V |
| Application | Power, Signal, Wire-to-Wire |
| Length | 300 mm |
| Connector Type | Female-Pigtail |
| Material | Nylon |
| Current Rating | 14 A |
| Type | Discrete Wire Assembly, Sealed Assembly |
| Wire Range | 16 AWG |
| Contact Finish | Matte Tin Plated |
| Features | Single Ended |
| Terminal Type | Crimp, Compression |
| Hole Center to Center | 3.6 mm |
| Number of Rows | 1 |
| Max. Insulation Dia. | 2.4 mm |
| Number of Contacts | 4 |
| Terminal Finish | Matte Tin Plated |
| Contact Plating Thickness | 2.54 um |
| Overmolded | No |
| Plating min - Mating | 2.54 um |
| Circuits (Loaded) | 4 |
| Material - Plating Termination | Matte Tin |
| Cable Length | 300 mm |
| Wire Size (AWG) | 16 |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Wire/Cable Type | UL 11028 |
| Wire Insulation Diameter | 1.90mm-2.40mm |
| Assembly Configuration | Single Ended Connector |
| Connector to Connector | Squba-to-Pigtail |
| Current - Maximum per Contact | 14 A |
| Material - Plating Mating | Matte Tin |
| Pitch - Mating Interface | 3.6 mm |
| Single Ended | Yes |
| Material - Metal | Alloy |
| Product Name | Squba |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
