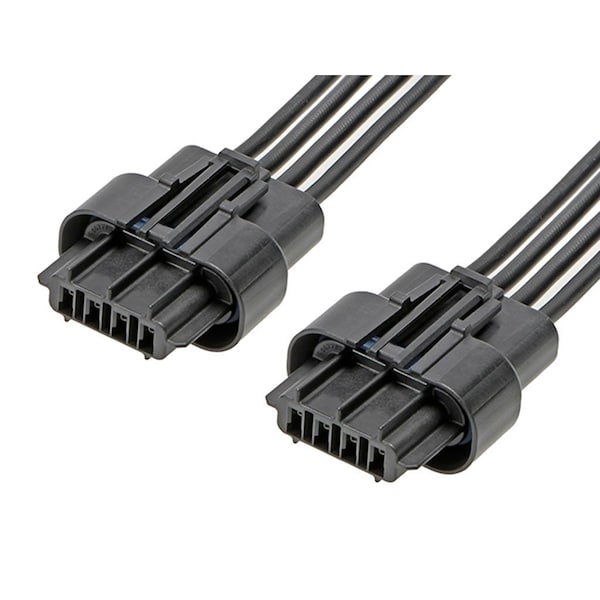

Squba 3.6 Female-To-Squba 3.6 Female Off-The-Shelf (Ots) Cable Assembly
| Series | 216620 |
|---|---|
| Application | Power, Signal, Wire-to-Wire |
| Cable Length | 300 mm |
| Type | Discrete Wire Assembly, Sealed Assembly |
| Wire/Cable Type | UL 11028 |
| Plating min - Termination | 2.54 um |
| Gender | Female-Female |
| Material - Plating Mating | Matte Tin |
| Circuits (Loaded) | 4 |
| Material - Metal | Copper Alloy |
| Material - Resin | Nylon |
| Color - Resin | Black |
| Plating min - Mating | 2.54 um |
| Current - Maximum per Contact | 14 A |
| Number of Rows | 1 |
| Pitch - Mating Interface | 3.6 mm |
| Lock to Mating Part | Yes |
| Wire Size AWG | 16 |
| Voltage - Maximum | 600 V |
| Wire Insulation Diameter | 1.90mm-2.40mm |
| Termination Interface: Style | Compression, Crimp |
| Material - Plating Termination | Matte Tin |
| Assembly Configuration | Dual Ended Connectors |
| Product Name | Squba |
| Connector to Connector | Squba-to-Squba |
| Overmolded | No |
| Single Ended | No |
| Package Quantity | 1 |
