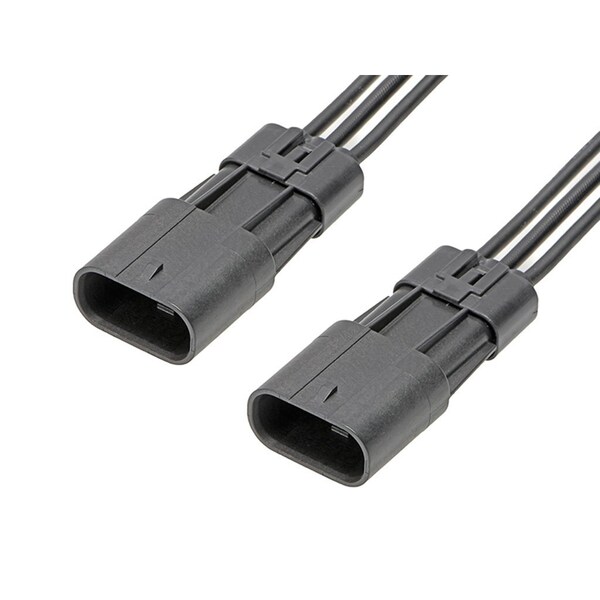

Squba 3.6 Male-To-Squba 3.6 Male Off-The-Shelf (Ots) Cable Assembly
| Cable Length | 600 mm |
|---|---|
| Gender | Male-Male |
| Circuits (Loaded) | 3 |
| Material - Plating Mating | Matte Tin |
| Plating min - Termination | 2.54 um |
| Wire/Cable Type | UL 11028 |
| Plating min - Mating | 2.54 um |
| Material - Metal | Copper Alloy |
| Number of Rows | 1 |
| Pitch - Mating Interface | 3.6 mm |
| Wire Insulation Diameter | 1.90mm-2.40mm |
| Material - Resin | Nylon |
| Voltage - Maximum | 600 V |
| Lock to Mating Part | Yes |
| Wire Size AWG | 16 |
| Termination Interface: Style | Compression, Crimp |
| Color - Resin | Black |
| Current - Maximum per Contact | 14 A |
| Material - Plating Termination | Matte Tin |
| Package Quantity | 1 |
