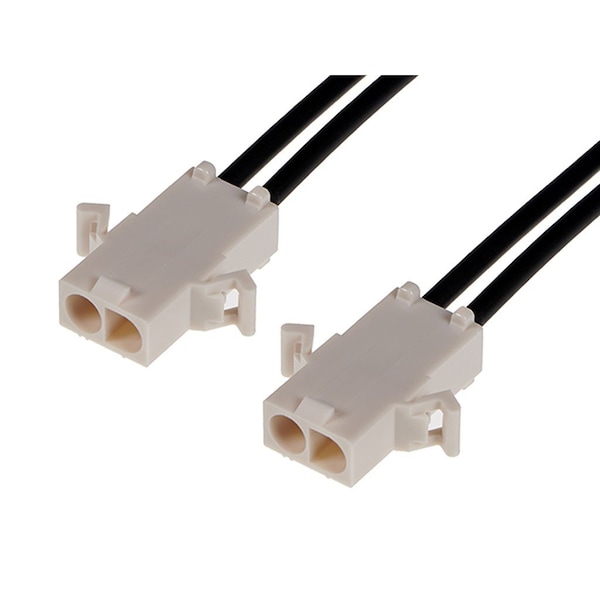

Standard .093 2 Circuit P To P 600Mm
| Color | Natural |
|---|---|
| Series | 216292 |
| Max. Voltage | 600V AC/DC |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Length | 600 mm |
| Connector Type | Male-Male |
| Material | Nylon |
| Wire Range | 14 AWG |
| Terminal Type | Crimp, Compression |
| Number of Rows | 1 |
| Number of Contacts | 2 |
| Type | Discrete Wire Assembly |
| Max. Insulation Dia. | 4.06 mm |
| Current Rating | 12 A |
| Hole Center to Center | 6.7 mm |
| Contact Finish | Tin Plated |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.508 µm |
| Pitch - Mating Interface | 6.7 mm |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Metal | Brass |
| Voltage - Maximum | 600V AC (RMS)/DC |
| Product Name | Standard .093" |
| Cable Length | 600 mm |
| Circuits (Loaded) | 2 |
| Connector to Connector | Standard 093"-to-Standard 093" |
| Wire Insulation Diameter | 1.65-4.06mm |
| Assembly Configuration | Dual Ended Connectors |
| Wire Size (AWG) | 14 |
| Overmolded | No |
| Wire/Cable Type | UL 1015 |
| Lock to Mating Part | Yes |
| Plating min - Mating | 0.508 um |
| Material - Resin | Nylon |
| Current - Maximum per Contact | 12 A |
| Single Ended | No |
| Package Quantity | 1 |
