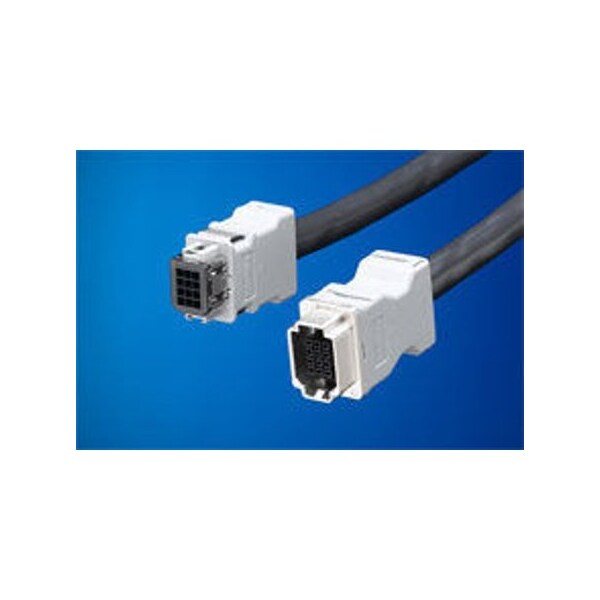

Conector de telecomunicaciones y datos, 12 contactos, hembra, terminal de crimpado, pestillo, receptáculo.
| Connector Type | Receptacle |
|---|---|
| Number of Contacts | 12 |
| Color | Black |
| Max. Voltage | 250V AC/DC |
| Application | Wire-to-Wire, Panel-Mount |
| Series | 51233 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 105 deg C |
| Shielded | No |
| Material | Polyester |
| Hole Center to Center | 3 mm |
| Flammability Rating | UL 94V-0 |
| Current Rating | 4 A |
| Pitch - Mating Interface | 3 mm |
| Lock to Mating Part | Yes |
| Orientation | Vertical |
| Product Name | CRC |
| CSA | LR19980 |
| Current - Maximum per Contact | 4 A |
| Panel Mount | Front, Rear |
| Component Type | Housing |
| UL | E29179 |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (Loaded) | 12 |
| Keying to Mating Part | Yes |
| Material - Metal | Stainless Steel |
| Material - Resin | Polyester |
| Waterproof / Dustproof | No |
| Durability (mating cycles max) | 100 |
| Voltage - Maximum | 250V AC (RMS)/DC |
| PCB Locator | No |
| Flammability | 94 V to 0 |
| Polarized to Mating Part | Yes |
| Package Quantity | 1 |
