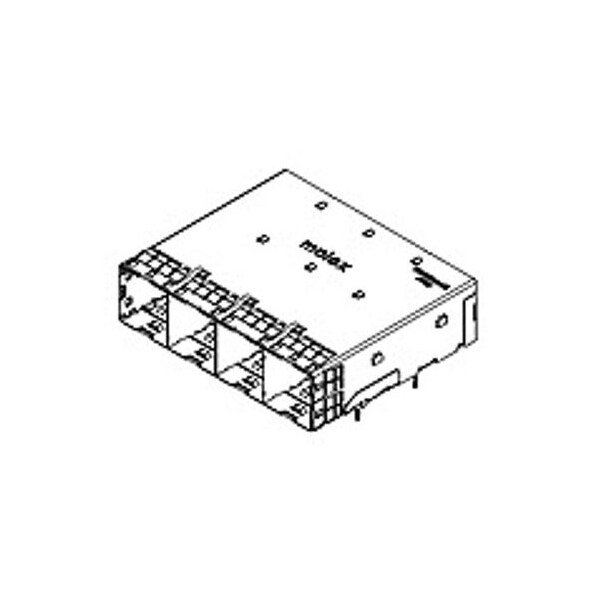

Conector de telecomunicaciones y datos, 144 contactos, hembra, ángulo recto, terminal de ajuste por presión.
| Number of Contacts | 144 |
|---|---|
| Color | Black |
| Max. Voltage | 30V AC/DC |
| Application | Wire-to-Board |
| Series | 76866 |
| Standards | CSA Certified, UL E107635 |
| Terminal Type | Through Hole - Compliant Pin |
| Material | High Temperature Thermoplastic |
| Hole Center to Center | 0.75 mm |
| Max. Temp. | 80 deg C |
| Current Rating | 0.75 A |
| Contact Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| PCB Retention | Yes |
| Circuits (Loaded) | 144 |
| Flammability | 94 V to 0 |
| Temperature Range - Operating | -40° to +80°C |
| Pitch - Mating Interface | 0.75 mm |
| Material - Metal | High Performance Alloy |
| Component Type | Receptacle, External Integrated Cage |
| Plating min - Mating | 0.762 um |
| Polarized to Mating Part | Yes |
| Material - Resin | High Temperature Thermoplastic |
| Material - Plating Mating | Gold |
| PCB Thickness - Recommended | 1.57 mm |
| CSA | LR19980 |
| PCB Locator | Yes |
| Orientation | Right Angle |
| Polarized to PCB | Yes |
| UL | E107635 |
| Voltage - Maximum | 30V AC (RMS)/DC |
| Durability (mating cycles max) | 250 |
| Current - Maximum per Contact | 0.75 A |
| Material - Plating Termination | Tin |
| Lock to Mating Part | Yes |
| Product Name | iPass+ |
| Package Quantity | 1 |
