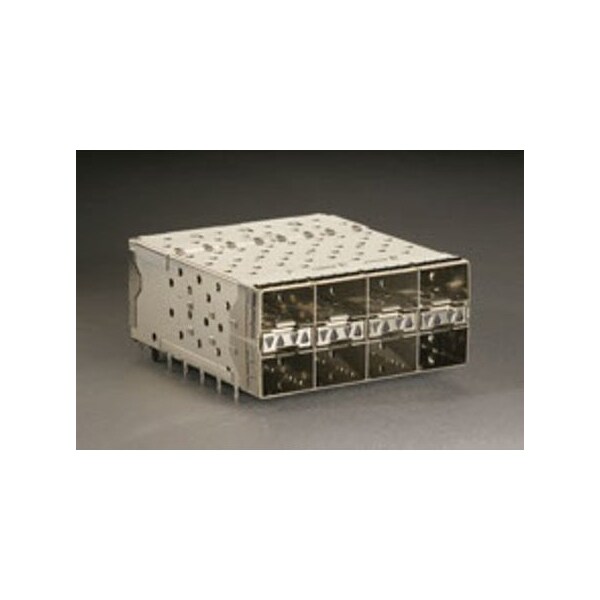

Conector de telecomunicaciones y datos, 160 contactos, hembra, ángulo recto, terminal de ajuste por presión, receptáculo.
| Connector Type | Female |
|---|---|
| Number of Contacts | 160 |
| Color | Black, Clear |
| Max. Voltage | 120V AC/DC |
| Application | Module-to-Board |
| Series | 76046 |
| Standards | CSA Certified, UL E29179 |
| Material | High Temperature Thermoplastic, Polycarbonate |
| Max. Temp. | 85 deg C |
| Shielded | Yes |
| Hole Center to Center | 0.8 mm |
| Terminal Type | Through Hole - Compliant Pin |
| Number of Ports | 8 |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Current Rating | 0.5 A |
| Contact Plating Thickness | 0.762 µm |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Temperature Range - Operating | -40° to +85°C |
| CSA | LR19980 |
| Flammability | 94 V to 0 |
| Lock to Mating Part | Yes |
| Component Type | Receptacle |
| Circuits Detail | 160 |
| Orientation | Right Angle |
| Polarized to PCB | Yes |
| Pitch - Mating Interface | 0.8 mm |
| PCB Thickness - Recommended | 1.57 mm |
| Current - Maximum per Contact | 0.5 A |
| PC Tail Length | 2.07 mm |
| Waterproof / Dustproof | No |
| Shield Type | EMI Gasket |
| Plating min - Mating | 0.762 um |
| Color - Resin | Black, Clear |
| Grounding to Panel | None |
| Material - Plating Termination | Tin |
| Product Name | SFP Plus |
| Material - Resin | High Temperature Thermoplastic, Polycarbonate |
| Material - Metal | High Performance Alloy |
| Voltage - Maximum | 120V AC (RMS)/DC |
| PCB Locator | Yes |
| Durability (mating cycles max) | 100 |
| Keying to Mating Part | None |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Package Quantity | 1 |
